TIMKEN 09062-09195AB tapered bearings with Flange
Also known as : 09062-09195AB
- Inside Diameter: 15.875 mm
- Outside Diameter: 49.225 mm
- Width: 8.809 mm
- Basic dynamic load rating: 42800 kN
- Basic static load rating: 40500 kN
TIMKEN 09062-09195AB Bearing
TIMKEN 09062-09195AB Bearing details

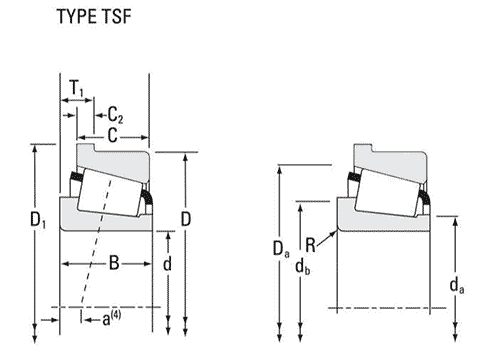

Series | 09000 |
---|---|
model | 09062-09195AB |
Cone Part Number | 09062 |
Cup Part Number | 09195AB |
Design Units | Imperial |
Cage Type | Stamped Steel |
Bearing Weight | 0.100 Kg 0.30 lb |
Dimensions | |
d - Bore | 15.875 mm 0.6250 in |
D - Cup Outer Diameter | 49.225 mm 1.9380 in |
D1 - Flange Outer Diameter | 53.081 mm 2.0898 in |
B - Cone Width | 21.539 mm 0.8480 in |
C - Cup Width | 14.288 mm 0.5625 in |
C1 - Cup Flange Width | 3.251 mm 0.1280 in |
T - Bearing Width to Flange | 8.809 mm 0.3468 in |
T1 - Bearing Width | 19.845 mm 0.7813 in |
Abutment and Fillet Dimensions | |
R - Cone Backface "To Clear" Radius | 0.800 mm 0.03 in |
r - Cup Backface "To Clear" Radius | 1.30 mm 0.050 in |
da - Cone Frontface Backing Diameter | 21.60 mm 0.85 in |
db - Cone Backface Backing Diameter | 22.10 mm 0.87 in |
Da - Cup Frontface Backing Diameter | 46.99 mm 1.85 in |
Ab - Cage-Cone Frontface Clearance | 1.5 mm 0.06 in |
Aa - Cage-Cone Backface Clearance | 1.8 mm 0.07 in |
a - Effective Center Location | -9.1 mm -0.36 in |
Basic Load Ratings | |
C90 - Dynamic Radial Rating (90 million revolutions) | 11100 N 2500 lbf |
C1 - Dynamic Radial Rating (1 million revolutions) | 42800 N 9630 lbf |
C0 - Static Radial Rating | 40500 N 9100 lbf |
Ca90 - Dynamic Thrust Rating (90 million revolutions) | 5050 N 1140 lbf |
Factors | |
K - Factor | 2.2 |
e - ISO Factor | 0.27 |
Y - ISO Factor | 2.26 |
G1 - Heat Generation Factor (Roller-Raceway) | |
G2 - Heat Generation Factor (Rib-Roller End) | |
Cg - Geometry Factor | 0.0452 |
As TIMKEN bearing distributor, Nodes bearings have TIMKEN 09062-09195AB bearings in stock, TSF (Tapered Single with Flange) Imperial , Tapered roller bearings.
Like the TS bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.
