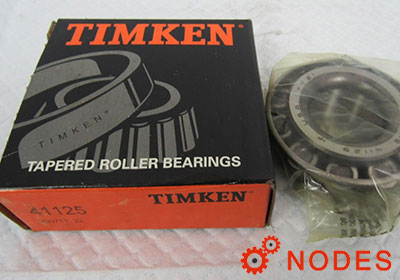

TIMKEN 41125-41286-B tapered bearings with Flange
Also known as : 41125-41286-B
- Inside Diameter: 28.575 mm
- Outside Diameter: 72.626 mm
- Width: 12.7 mm
- Basic dynamic load rating: 82.6 kN
- Basic static load rating: 64.1 kN
TIMKEN 41125-41286-B Bearing
TIMKEN 41125-41286-B Bearing details
Series | 41000 |
---|---|
model | 41125-41286-B |
Cone Part Number | 41125 |
Cup Part Number | 41286-B |
Design Units | Imperial |
Cage Type | Stamped Steel |
Bearing Weight |
0.500 Kg 1.10 lb |
Dimensions | |
d - Bore |
28.575 mm 1.1250 in |
D - Cup Outer Diameter |
72.626 mm 2.8593 in |
D1 - Flange Outer Diameter |
78.082 mm 3.0741 in |
B - Cone Width |
24.257 mm 0.9550 in |
C - Cup Width |
17.463 mm 0.6875 in |
C1 - Cup Flange Width |
5.555 mm 0.2187 in |
T - Bearing Width to Flange |
12.700 mm 0.5000 in |
T1 - Bearing Width |
24.608 mm 0.9688 in |
Abutment and Fillet Dimensions | |
R - Cone Backface "To Clear" Radius |
4.800 mm 0.190 in |
r - Cup Backface "To Clear" Radius |
1.5 mm 0.06 in |
da - Cone Frontface Backing Diameter |
36.60 mm 1.44 in |
db - Cone Backface Backing Diameter |
48 mm 1.89 in |
Da - Cup Frontface Backing Diameter |
71.10 mm 2.80 in |
Ab - Cage-Cone Frontface Clearance |
3 mm 0.12 in |
Aa - Cage-Cone Backface Clearance |
2.3 mm 0.09 in |
a - Effective Center Location |
-4.1 mm -0.16 in |
Basic Load Ratings | |
C90 - Dynamic Radial Rating (90 million revolutions) |
21400 N 4820 lbf |
C1 - Dynamic Radial Rating (1 million revolutions) |
82600 N 18600 lbf |
C0 - Static Radial Rating |
64100 N 14400 lbf |
Ca90 - Dynamic Thrust Rating (90 million revolutions) |
22100 N 4960 lbf |
Factors | |
K - Factor | 0.97 |
e - ISO Factor | 0.6 |
Y - ISO Factor | 1 |
G1 - Heat Generation Factor (Roller-Raceway) | 13 |
G2 - Heat Generation Factor (Rib-Roller End) | 5.83 |
Cg - Geometry Factor | 0.0686 |
As TIMKEN bearing distributor, Nodes bearings have TIMKEN 41125-41286-B bearings in stock, TSF (Tapered Single with Flange) Imperial , Tapered roller bearings.
Like the TS bearing design, the TSF design consists of two main separable parts: the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft. TSF bearings have flanged cups to facilitate axial location and accurately align seals in through-bored housings.
