FAG 1205-TVH Bearing

FAG 1205-TVH bearings

Also known as : 1205-TVH

• Inside Diameter: 25 mm
• Outside Diameter: 52 mm
• Width: 15 mm
• Basic dynamic load rating: 12.3 kN
• Basic static load rating: 3.25 kN

Inquire Now

FAG 1205-TVH Bearing

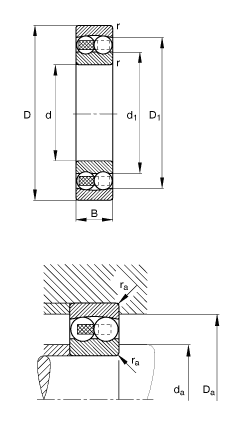

d	25 mm
D	52 mm
B	15 mm
D1	43,6 mm
Da max	46,4 mm
d1	33,3 mm
da min	30,6 mm
ra max	1 mm
rmin	1 mm
m	0,138 kg	Mass
Cr	12300 N	Basic dynamic load rating, radial
C0r	3250 N	Basic static load rating, radial
e	0,27
Y1	2,37
Y2	3,66
Y0	2,48
nG	15500 1/min	Limiting speed
nB	13400 1/min	Reference speed
Cur	203 N	Fatigue limit load, radial

As FAG bearing distributor, Nodes bearings have FAG 1205-TVH self aligning ball bearings in stock, main dimensions to DIN 630.
