FAG 3305-BD-XL Bearing

FAG 3305-BD-XL bearings | Dimensions: 25x62x25.4mm

Also known as : 3305-BD-XL

  • Inside Diameter: 25 mm
  • Outside Diameter: 62 mm
  • Width: 25.4 mm
  • Basic dynamic load rating: 31.5 kN
  • Basic static load rating: 21 kN

Inquire Now


FAG 3305-BD-XL Bearing

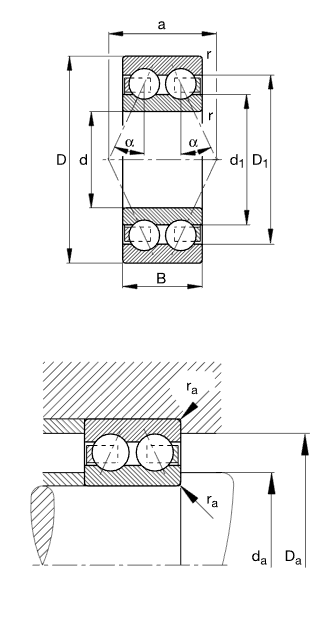

FAG 3305-BD-XL Bearing details

Number3305-BD-XL
TypeAngular contact ball bearings
main dimensions to DIN 628-3, double row, contact angle α = 30°
d25mm
D62mm
B25,4mm
a35,415mm
D151,5mm
Da max55mm
d139,5mm
da min32mm
ra max1mm
rmin1,1mm
α30°Contact angle
m0,355kgMass
Cr31500NBasic dynamic load rating, radial
C0r21000NBasic static load rating, radial
Cur1410NFatigue limit load, radial
nG124001/minLimiting speed
nϑr94001/minReference speed

Nodes bearings have FAG 3305-BD-XL bearings in stock, FAG bearings, main dimensions to DIN 628-3, double row, contact angle α = 30°.
