FAG 61940 bearings
Also known as : 61940
- Inside Diameter: 200 mm
- Outside Diameter: 280 mm
- Width: 38 mm
- Basic dynamic load rating: 158 kN
- Basic static load rating: 168 kN

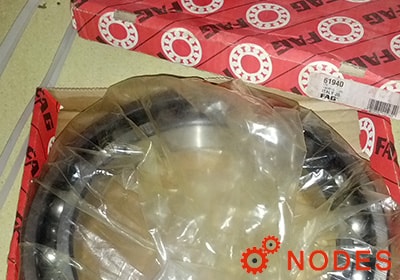

FAG 61940 Bearing
FAG 61940 Bearing details
| d | 200 mm | |
|---|---|---|
| D | 280 mm | |
| B | 38 mm | |
| D1 | 255,3 mm | |
| Da max | 269,8 mm | |
| d1 | 225,7 mm | |
| da min | 210,2 mm | |
| ra max | 2,1 mm | |
| rmin | 2,1 mm | |
| m | 6,27 kg | Mass |
| Cr | 158000 N | Basic dynamic load rating, radial |
| C0r | 168000 N | Basic static load rating, radial |
| Cur | 6300 N | Fatigue limit load, radial |
| nG | 3100 1/min | Limiting speed |
| nB | 2950 1/min | Reference speed |
| f0 | 16,4 | Calculation factor |
As FAG bearing distributor, Nodes bearings have FAG 61940 deep groove ball bearings in stock, main dimensions to DIN 625-1.
FAG 61940 bearing cross reference
FAG 61940 bearing
200mm x 280mm x 38mm
NSK 6940 bearing
200mm x 280mm x 38mm
NSK 6940 bearing
200mm x 280mm x 38mm
NSK 6940ZZS bearing
200mm x 280mm x 38mm
FAG 16040 bearing
200mm x 310mm x 34mm
FAG 16040-MA bearing
200mm x 310mm x 34mm
FAG 6040-M bearing
200mm x 310mm x 51mm
FAG 61840 bearing
200mm x 250mm x 24mm
FAG 61840-MA bearing
200mm x 250mm x 24mm
FAG 61940-MA bearing
200mm x 280mm x 38mm
FAG 6240-M bearing
200mm x 360mm x 58mm
