FAG bearing catalogue: FAG ball bearings, roller bearings, bearing housing, bearing accessories. The catalogue give you the capability to select the correct FAG bearings that best meet the needs of your application and equipment design.
The Schaeffler Group's INA and FAG brands stand for the development and manufacture of high-quality rolling bearings, plain bearings, linear guidance systems. Refer to INA bearing catalogue.
FAG hybrid bearings
The rings of the FAG hybrid bearings are made from rolling bearing steel and the rolling elements are made from ceramic.
FAG ceramic-coated bearings (current-insulating)
FAG ceramic-coated bearings are standard bearings in which either the inner ring or outer ring has the ceramic coating Insutect.
FAG barrel roller bearings
Nodes supplies FAG barrel roller bearings, including: Cylindrical bore: 202, 203 Tapered bore: 202..-K, 203..-K FAG Barrel roller bearings are single row, self-aligning roller bearings. They comprise solid outer rings with a concave raceway, solid in
FAG B70..-TVP-P4 series spindle bearings
FAG spindle bearings are manufactured under the highest cleanliness conditions and using state-of-the-art washing technologies. Furthermore, their quality is assured by means of 100% end-ofline noise testing. Due to the cleanliness conditions and the
FAG spindle bearings, hybrid bearings, ceramic ball
FAG hybrid spindle bearings have bearing rings made from steel and, in contrast to standard spindle bearings, rolling elements made from ceramic (silicon nitride Si3N4) FAG hybrid spindle bearings achieve very high speeds, have lower friction and hea
FAG sealed spindle bearings
FAG spindle bearings are super precision machine elements that react with high sensitivity to harmful influences from the environment In sealed designs, the rolling element system is protected by gap seals on both sides of the bearings. Due to their
FAG spindle bearings, precision bearings
FAG spindle bearings are super precision single row angular contact ball bearings with solid outer and inner rings, ball and cage assemblies and solid window cages. The dimensions are standardised. Due to their very narrow tolerances, the FAG spindle
FAG self aligning ball bearings
FAG self-aligning ball bearings are double row, self-retaining units comprising outer rings with a concave raceway, inner rings with a cylindrical or tapered bore and ball and cage assemblies. The bearings are available in open and sealed designs. FA
FAG spherical roller bearings
FAG spherical roller bearings are double row, self-retaining units comprising solid outer rings with a concave raceway, solid inner rings and barrel rollers with cages.
FAG cylindrical roller bearings
FAG cylindrical roller bearings with cage are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies.
FAG deep groove ball bearings
FAG deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies.
FAG single row deep groove ball bearings
FAG single row deep groove ball bearings are the most frequently used type of rolling bearing. They are produced in numerous sizes and designs and are particularly economical.
FAG tapered roller bearings
Nodes bearing supplies FAG tapered roller bearings including standard designs, open variants matched in pairs, and integral designs sealed on one side, JK0S.
FAG double row deep groove ball bearings
FAG double row deep groove ball bearings correspond in their structure and function to a pair of single row deep groove ball bearings.
FAG single row angular contact ball bearings
FAG single row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages.

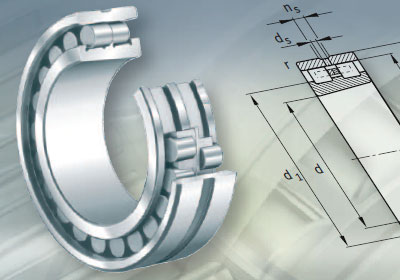

FAG high precision cylindrical roller bearings
FAG high cylindrical roller bearings of this design are double row precision bearings for machine tools. They allow radially rigid, high precision bearing arrangements and are principally used to give radial support for main spindles.

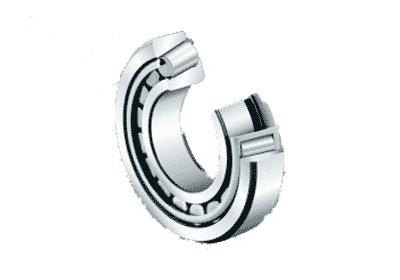

FAG tapered roller bearings wholesaler
Nodes bearings, FAG tapered roller bearings wholesaler,have a wide range of FAG bearings in stock, FAG tapered roller bearings comprise solid inner and outer rings with tapered raceways and tapered rollers with cages made from pressed sheet steel.
FAG T7FC tapered roller bearing
The FAG T7FC tapered roller bearing is the central FAG bearing position in applications such as axial piston motors, and has to support the highest possible radial and axial loads in small spaces.
FAG Tapered Roller Bearings reliable, energy efficient
FAG tapered roller bearings are characterized by high radial and axial load carrying capacity and by a large usable speed range. They are efficient at supporting forces and ensure a precise and rigid shaft guidance system due to the large effective d

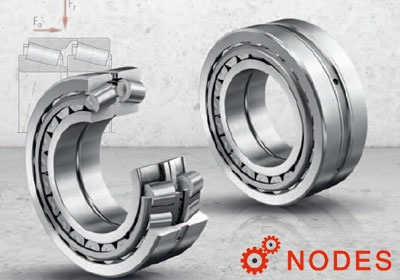

FAG tapered roller bearings in matched pairs
FAG tapered roller bearings in matched pairs are of an open design and are not self-retaining. As a result, the inner ring with the rollers and the cage can be mounted separately from the outer ring.
FAG axial spherical roller bearings
FAG axial spherical roller bearings are single row, self-aligning roller bearings. They comprise solid shaft and housing washers and asymmetrical barrel rollers with cages. The cage holds the roller and cage assembly together with the shaft locating
