FAG HSS7015-C-T-P4S Bearing

FAG HSS7015-C-T-P4S spindle bearings | 75x115x20mm

Also known as : HSS7015-C-T-P4S

• Inside Diameter: 75 mm
• Outside Diameter: 115 mm
• Width: 20 mm
• Basic dynamic load rating: 25.5 kN
• Basic static load rating: 17.9 kN

Inquire Now

FAG HSS7015-C-T-P4S Bearing

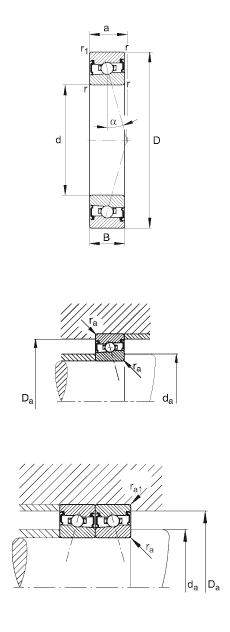

Number	HSS7015-C-T-P4S
Type	FAG spindle bearings adjusted, in pairs or sets, contact angle a = 15°, lip seals on both sides, non-contact, restricted tolerances
d	75 mm
D	115 mm
B	20 mm
a	22,7 mm
Da	107 mm	Tolerance: H12
da	82 mm	Tolerance: h12
r1 min	1,1 mm
ra max	1 mm
ra1 max	0,6 mm
rmin	1,1 mm
α	15 °	Contact angle
m	0,742 kg	≈ Mass
Cr	25500 N	Basic dynamic load rating, radial
C0r	17900 N	Basic static load rating, radial
Cur	1850 N	Fatigue limit load, radial
nG Fett	17000 1/min	Limiting speed for grease lubrication The limiting speeds are based on elastically preloaded single bearings.
FV L	89 N	Preload force
FV M	266 N	Preload force
FV H	533 N	Preload force
KaE L	265 N	Lift-off force
KaE M	835 N	Lift-off force
KaE H	1737 N	Lift-off force
ca L	53,7 N/µm	Axial rigidity
ca M	84,3 N/µm	Axial rigidity
ca H	115 N/µm	Axial rigidity

Nodes bearings have FAG HSS7015-C-T-P4S spindle bearings in stock, FAG bearings, precision spindle bearings, adjusted, in pairs or sets, contact angle α = 15°, lip seals on both sides, non-contact, restricted tolerances.
