FAG 20210-K-TVP-C3 Barrel roller bearings | 50x90x20mm
Also known as : 20210-K-TVP-C3
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 20 mm
- Basic dynamic load rating: 59 kN
- Basic static load rating: 69 kN
FAG 20210-K-TVP-C3 Bearing

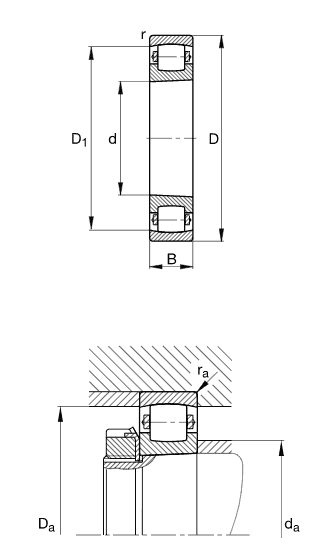

FAG 20210-K-TVP-C3 Bearing details
| Number | 20210-K-TVP-C3 | |
|---|---|---|
| Type |
Barrel roller bearings main dimensions to DIN 635-1, with tapered bore, taper 1:12 |
|
| d | 50mm | |
| D | 90mm | |
| B | 20mm | |
| D1 | 79,5mm | |
| Da max | 83mm | |
| da min | 57mm | |
| ra max | 1mm | |
| rmin | 1,1mm | |
| m | 0,489kg | Mass |
| Cr | 59000N | Basic dynamic load rating, radial |
| C0r | 69000N | Basic static load rating, radial |
| Cur | 7200N | Fatigue limit load, radial |
| nG | 77001/min | Limiting speed |
Nodes bearings have FAG 20210-K-TVP-C3 bearings in stock. 20210-K-TVP-C3, Barrel roller bearings, main dimensions to DIN 635-1, with tapered bore, taper 1:12.
FAG 20210-K-TVP-C3 bearing cross reference
FAG 20210-TVP bearing
50mm x 90mm x 20mm
