FAG 20210-TVP Barrel roller bearings | 50x90x20mm
Also known as : 20210
- Inside Diameter: 50 mm
- Outside Diameter: 90 mm
- Width: 20 mm
- Basic dynamic load rating: 59 kN
- Basic static load rating: 69 kN
FAG 20210-TVP Bearing

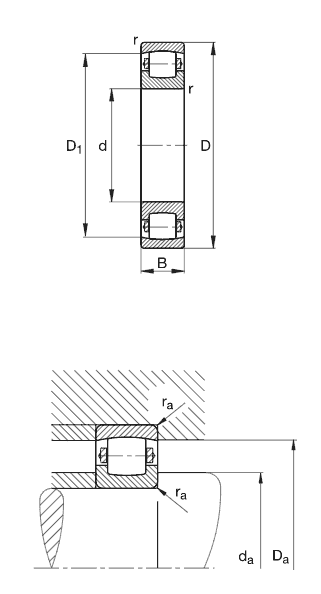

FAG 20210-TVP Bearing details
| Number | 20210-TVP | |
|---|---|---|
| Type |
Barrel roller bearings main dimensions to DIN 635-1 |
|
| d | 50mm | |
| D | 90mm | |
| B | 20mm | |
| D1 | 79,5mm | |
| Da max | 83mm | |
| da min | 57mm | |
| ra max | 1mm | |
| rmin | 1,1mm | |
| m | 0,499kg | Mass |
| Cr | 59000N | Basic dynamic load rating, radial |
| C0r | 69000N | Basic static load rating, radial |
| Cur | 7200N | Fatigue limit load, radial |
| nG | 77001/min | Limiting speed |
Nodes bearings have FAG 20210-TVP bearings in stock. 20210-TVP, Barrel roller bearings, main dimensions to DIN 635-1.
