FAG 22215-E1-XL-K-C3 Spherical roller bearings | 75x130x31mm
Also known as : 22215-E1-XL-K-C3
- Inside Diameter: 75 mm
- Outside Diameter: 130 mm
- Width: 31 mm
- Basic dynamic load rating: 216 kN
- Basic static load rating: 237 kN
FAG 22215-E1-XL-K-C3 Bearing
FAG 22215-E1-XL-K-C3 Bearing details
| Number | 22215-E1-XL-K-C3 | |
|---|---|---|
| Type | Spherical roller bearings | |
| d | 75 mm | |
| D | 130 mm | |
| B | 31 mm | |
| D1 | 117,7 mm | |
| Da max | 121 mm | |
| d2 | 89,8 mm | |
| da min | 84 mm | |
| ds | 3,2 mm | |
| ns | 6,5 mm | |
| ra max | 1,5 mm | |
| rmin | 1,5 mm | |
| m | 1,68 kg | Mass |
| Cr | 216000 N | Basic dynamic load rating, radial |
| C0r | 237000 N | Basic static load rating, radial |
| Cur | 29500 N | Fatigue limit load, radial |
| nG | 6500 1/min | Limiting speed |
| nB | 3700 1/min | Reference speed |
| e | 0,22 | |
| Y1 | 3,1 | |
| Y2 | 4,62 | |
| Y0 | 3,03 |
Nodes bearings have FAG 22215-E1-XL-K-C3 Spherical roller bearings in stock, main dimensions to DIN 635-2, with tapered bore, taper 1:12.
FAG 22215-E1-XL-K-C3 bearing cross reference
FAG 21315-E1-XL bearing
75mm x 160mm x 37mm
FAG 22215-E1-XL bearing
75mm x 130mm x 31mm
FAG 22315-E1-XL bearing
75mm x 160mm x 55mm
NSK 22215EAE4 bearing
75mm x 130mm x 31.0mm

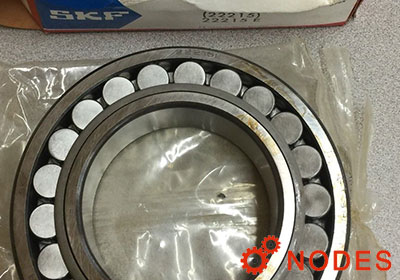

SKF 22215E bearing
75mm x 130mm x 31mm

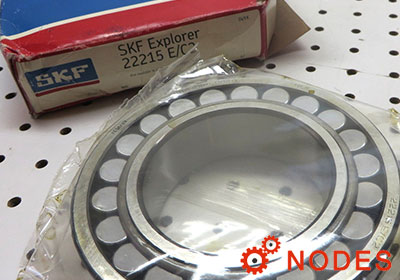

SKF 22215E/C2 bearing
75mm x 130mm x 31mm

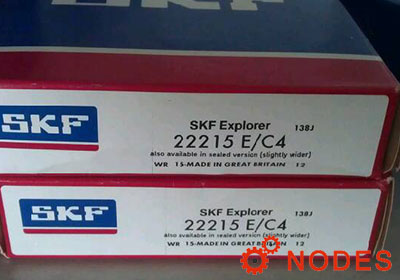

SKF 22215E/C4 bearing
75mm x 130mm x 31mm

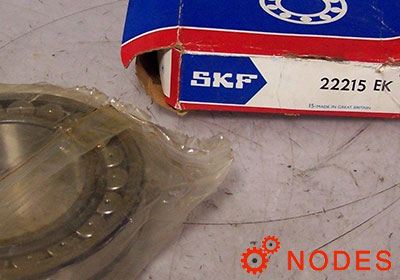

SKF 22215EK bearing
