NSK 22215EAE4 Spherical roller bearings
Also known as : 22215EAE4, 22215CC/W33
- Inside Diameter: 75 mm
- Outside Diameter: 130 mm
- Width: 31 mm
- Basic dynamic load rating: 238 kN
- Basic static load rating: 244 kN
NSK 22215EAE4 Bearing

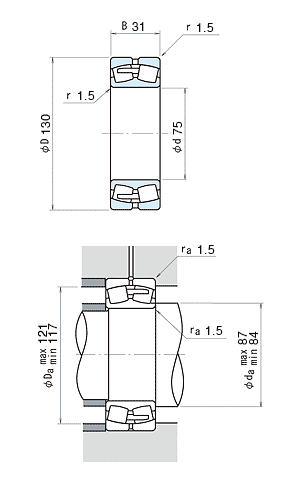

NSK 22215EAE4 Bearing details
model | 22215EAE4 |
---|---|
d | 75 mm |
D | 130 mm |
B | 31.0 mm |
rmin. | 1.5 mm |
Cr |
238000 N 24200 kgf |
C0r |
244000 N 24900 kgf |
Limiting speeds | 4000 min-1 (Grease) |
Limiting speeds | 5000 min-1 (Oil) |
da min | 84 mm |
da max | 87.000 mm |
Da max | 121 mm |
Da min | 117 mm |
ra | 1.5 mm |
Constant | 0.22 |
Y2 | 4.5 Axial Load Factors |
Y3 | 3 Axial Load Factors |
Y0 | 3 Axial Load Factors |
Mass | 1.64 kg (approx.) |
NSK 22215EAE4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
