FAG 22332-BE-XL Spherical roller bearings
Also known as : 22332-BE-XL, 22332E, 22332EAE4
- Inside Diameter: 160 mm
- Outside Diameter: 340 mm
- Width: 114 mm
- Basic dynamic load rating: 1680 kN
- Basic static load rating: 1990 kN
![](/img/fag/srb/fag-e1.jpg)
FAG 22332-BE-XL Bearing
FAG 22332-BE-XL Bearing details
model | 22332-BE-XL |
---|---|
d | 160 mm |
D | 340 mm |
B | 114 mm |
D1 | 286.7 mm |
Da max | 323 mm |
d2 | 201.2 mm |
da min | 177 mm |
ra max | 3 mm |
rmin | 4 mm |
Cr | 1680000 N |
C0r | 1990000 N |
Limiting speed | 2250 1/min |
Reference speed | 1420 1/min |
Cur | 157000 N Fatigue limit load, radial |
e | 0.35 |
Y1 | 1.94 |
Y2 | 2.88 |
Y0 | 1.89 |
mass | 48.4 kg |
FAG 22332-BE-XL roller bearings, spherical roller bearing, Increased capacity design, main dimensions to DIN 635-2.
![](/img/fag/srb/e1-drawing.png)
FAG 22332-BE-XL bearing cross reference
![](/img/fag/srb/fag-e1.jpg)
FAG 22232-E1-XL bearing
160mm x 290mm x 80mm
![](/img/fag/srb/fag-e1.jpg)
FAG 23032-E1-XL-TVPB bearing
160mm x 240mm x 60mm
![](/img/fag/srb/fag-e1.jpg)
FAG 23232-E1-XL-TVPB bearing
160mm x 290mm x 104mm
![](/img/fag/srb/fag-e1.jpg)
FAG 24032-BE-XL bearing
160mm x 240mm x 80mm
![](/img/fag/srb/fag-e1.jpg)
FAG 24132-BE-XL bearing
160mm x 270mm x 109mm
![](/img/fag/srb/fag-e1a.jpg)
FAG 23032-E1A-XL-M bearing
160mm x 240mm x 60mm
![](/img/fag/srb/23132e1a-m.jpg)
FAG 23132-E1A-XL-M bearing
160mm x 270mm x 86mm
![](/img/fag/srb/fag-e1a.jpg)
FAG 23232-E1A-XL-M bearing
160mm x 290mm x 104mm
![](/img/skf/srb/22332ccw33.jpg)

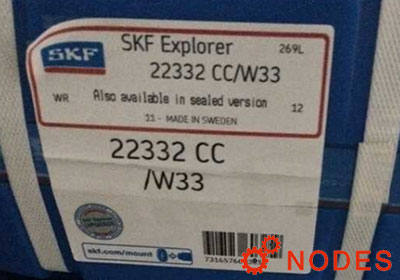

SKF 22332CC/W33 bearing
160mm x 340mm x 114mm
![](/img/skf/srb/22332cc-c3w33.jpg)

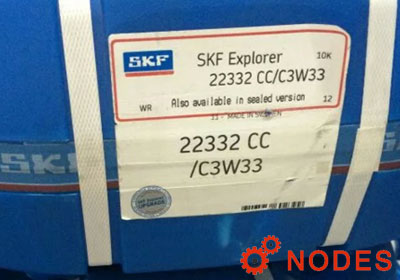

SKF 22332CC/C3W33 bearing
