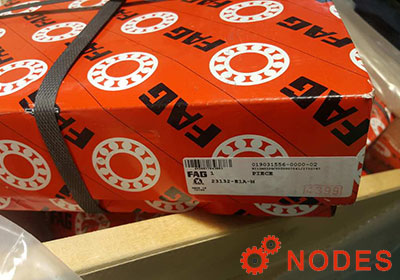

FAG 23132-E1A-XL-M Spherical roller bearings
Also known as : 23132-E1A-XL-M, 23132CAE4
- Inside Diameter: 160 mm
- Outside Diameter: 270 mm
- Width: 86 mm
- Basic dynamic load rating: 1160 kN
- Basic static load rating: 1550 kN
FAG 23132-E1A-XL-M Bearing
FAG 23132-E1A-XL-M Bearing details
| model | 23132-E1A-XL-M |
|---|---|
| d | 160 mm |
| D | 270 mm |
| B | 86 mm |
| D1 | 238.3 mm |
| Da max | 258 mm |
| da min | 172 mm |
| ds | 8 mm |
| ns | 15 mm |
| ra max | 2.1 mm |
| rmin | 2.1 mm |
| Cr | 1160000 N |
| C0r | 1550000 N |
| Limiting speed | 2490 1/min |
| Reference speed | 1560 1/min |
| Cur | 162000 N Fatigue limit load, radial |
| e | 0.29 |
| Y1 | 2.32 |
| Y2 | 3.45 |
| Y0 | 2.26 |
| mass | 20 kg |
FAG 23132-E1A-XL-M roller bearings, spherical roller bearing, main dimensions to DIN 635-2.
