FAG 23152-BE-XL-2RSR Bearing

FAG 23152-BE-XL-2RSR sealed spherical roller bearings

Also known as : 23152-BE-XL-2RSR

  • Inside Diameter: 260 mm
  • Outside Diameter: 440 mm
  • Width: 144 mm
  • Basic dynamic load rating: 2600 kN
  • Basic static load rating: 3900 kN

Inquire Now


FAG 23152-BE-XL-2RSR Bearing

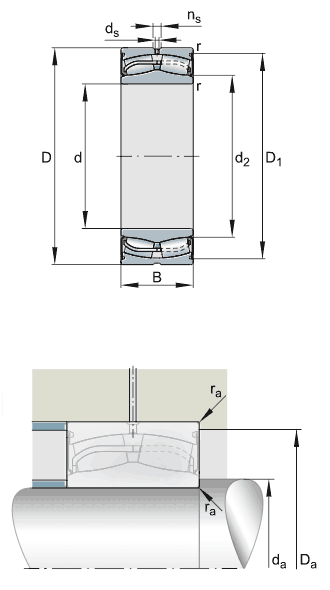

FAG 23152-BE-XL-2RSR Bearing details

Number 23152-BE-XL-2RSR
Type Sealed spherical roller bearings
Lip seal on both sides

d 260mm
D 440mm
B 144mm
D1 412mm
Da max 423mm
d2 295mm
da min 277mm
ds 9,5mm
ns 17,7mm
ra max 3mm
rmin 4mm
m 90kg Mass
Cr 2600000N Basic dynamic load rating, radial
C0r 3900000N Basic static load rating, radial
Cur 300000N Fatigue limit load, radial
nG 3751/min Limiting speed
e 0,3
Y1 2,26
Y2 3,37
Y0 2,21

Nodes bearings have FAG 23152-BE-XL-2RSR bearings in stock. 23152-BE-XL-2RSR, sealed spherical roller bearings, Lip seal on both sides.

FAG 23152-BE-XL-2RSR bearing cross reference

SKF 23152CC/W33 bearing
260mm x 440mm x 144mm
SKF 23152CC/W33 bearing
260mm x 440mm x 144mm
NSK 23152CAKE4 bearing
260mm x 440mm x 144.0mm
NSK 23152CAE4 bearing
260mm x 440mm x 144.0mm
FAG 23152-BE-XL-K bearing
260mm x 440mm x 144mm
NTN 23152EMD1 bearing
260mm x 440mm x 144mm
NTN 23152EMKD1 bearing
260mm x 440mm x 144mm
