FAG 24040-BE-XL Spherical roller bearings
Also known as : 24040-BE-XL, 24040E, 24040EAE4
- Inside Diameter: 200 mm
- Outside Diameter: 310 mm
- Width: 109 mm
- Basic dynamic load rating: 1350 kN
- Basic static load rating: 2150 kN
FAG 24040-BE-XL Bearing
FAG 24040-BE-XL Bearing details
| model | 24040-BE-XL |
|---|---|
| d | 200 mm |
| D | 310 mm |
| B | 109 mm |
| D1 | 271.6 mm |
| Da max | 299.8 mm |
| d2 | 223.6 mm |
| da min | 210.2 mm |
| ra max | 2.1 mm |
| rmin | 2.1 mm |
| Cr | 1350000 N |
| C0r | 2150000 N |
| Limiting speed | 2010 1/min |
| Reference speed | 1240 1/min |
| Cur | 215000 N Fatigue limit load, radial |
| e | 0.32 |
| Y1 | 2.13 |
| Y2 | 3.17 |
| Y0 | 2.08 |
| mass | 30.1 kg |
FAG 24040-BE-XL roller bearings, spherical roller bearing, Increased capacity design, main dimensions to DIN 635-2.
FAG 24040-BE-XL bearing cross reference
FAG 22240-BE-XL bearing
200mm x 360mm x 98mm

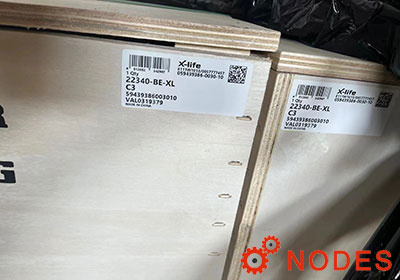

FAG 22340-BE-XL bearing
200mm x 420mm x 138mm

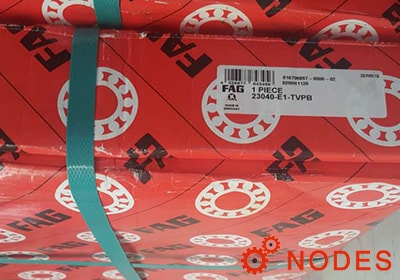

FAG 23040-E1-TVPB bearing
200mm x 310mm x 82mm

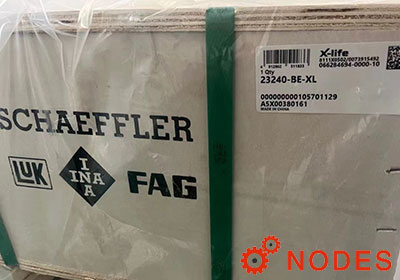

FAG 23240-BE-XL bearing
200mm x 360mm x 128mm
FAG 24140-BE-XL bearing
200mm x 340mm x 140mm
FAG 23040-E1A-XL-M bearing
200mm x 310mm x 82mm
NSK 24040CK30E4 bearing
200mm x 310mm x 109.0mm
NSK 24040CE4 bearing
200mm x 310mm x 109.0mm
FAG 22240-BE-XL-K bearing
200mm x 360mm x 98mm
FAG 22340-BE-XL-K bearing
200mm x 420mm x 138mm
FAG 23040-E1-XL-K-TVPB bearing
200mm x 310mm x 82mm
