FAG 30218-A-N11CA tapered roller bearings
Also known as : 30218-A-N11CA,
- Inside Diameter: 90 mm
- Outside Diameter: 160 mm
- Width: 65 mm
- Basic dynamic load rating: 345 kN
- Basic static load rating: 510 kN
FAG 30218-A-N11CA Bearing
FAG 30218-A-N11CA Bearing details

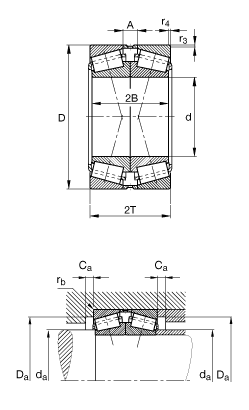

| model | 30218-A-N11CA |
|---|---|
| d | 90 mm |
| D | 160 mm |
| 2T | 65 mm |
| 2B | 60 mm |
| A | 13 mm |
| Ca min | 5 mm |
| Da max | 150 mm |
| Da min | 140 mm |
| da max | 103 mm |
| r3,4 min | 2 mm |
| rb max | 2 mm |
| Cr | 345000 N, Basic dynamic load rating, radial |
| C0r | 510000 N, Basic static load rating, radial |
| Limiting speed | 4550 1/min |
| Reference speed | 3050 1/min |
| Cur | 58000 N, Fatigue limit load, radial |
| e | 0.42 |
| Y0 | 1.57 |
| Y1 | 1.61 |
| Y2 | 2.39 |
| mass | 5.4 kg |
Nodes bearings have FAG 30218-A-N11CA roller bearings in stock, more related FAG bearings: FAG tapered roller bearings catalogue, main dimensions to DIN ISO 355 / DIN 720, separable, for fitting in pairs in X arrangement, with axial internal clearance.
FAG 30218-A-N11CA bearing cross reference
FAG 30218-A bearing
90mm x 160mm x 32.5mm
FAG 30218-XL bearing
90mm x 160mm x 32.5mm
FAG 30318-A bearing
90mm x 190mm x 46.5mm
FAG 31318 bearing
90mm x 190mm x 46.5mm
FAG 32018-XA bearing
90mm x 140mm x 32mm
FAG 32018-X-XL bearing
90mm x 140mm x 32mm
FAG 32218-A bearing
90mm x 160mm x 42.5mm
FAG 32218-XL bearing
90mm x 160mm x 42.5mm
FAG 32318-A bearing
90mm x 190mm x 67.5mm
FAG 32318-B bearing
90mm x 190mm x 67.5mm
FAG 32318-XL bearing
90mm x 190mm x 67.5mm
