Nodes supplies FAG split spherical roller bearings, which inculdes 222S, 222SM, 230S, 230SM, 231S, 231SM, 239SM, 240SM, 241SM series.
In FAG split spherical roller bearings, the inner ring, outer ring and cage with the roller set are split in half. The split bearing rings are held together by screws. FAG Split spherical roller bearings are principally used where the replacement of unsplit spherical roller bearings would require costly additional work, involving the removal of gears or couplings, the dismounting of drives or the dismantling of shaft power trains. The use of split spherical roller bearings reduces the downtime of machinery and plant.
FAG 222S.615 split spherical roller bearings
Nodes bearings have FAG 222S.615 bearings in stock, split spherical roller bearings, 222S.615 bearings dimensions: 176.213mm x 340mm x 92mm, Cr: 1140000N, C0r: 1640000N.
- Brand: FAG
- Inside Diameter: 176.213 mm
- Outside Diameter: 340 mm
- Width: 92 mm
- Basic dynamic load rating: 1140 kN
- Basic static load rating: 1140 kN

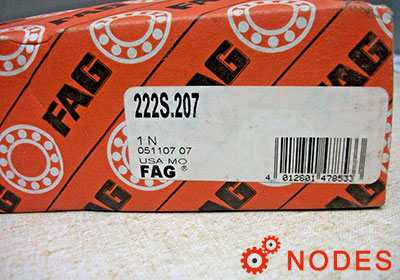

FAG 222S.207 split spherical roller bearings
Nodes bearings have FAG 222S.207 bearings in stock, split spherical roller bearings, 222S.207 bearings dimensions: 61.913mm x 130mm x 31mm, Cr: 172000N, C0r: 210000N.
- Brand: FAG
- Inside Diameter: 61.913 mm
- Outside Diameter: 130 mm
- Width: 31 mm
- Basic dynamic load rating: 172 kN
- Basic static load rating: 172 kN

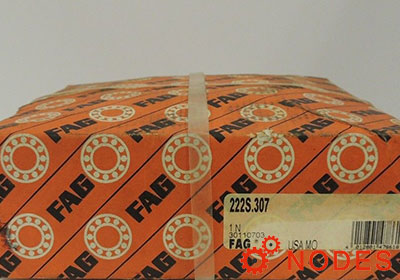

FAG 222S.307 split spherical roller bearings
Nodes bearings have FAG 222S.307 bearings in stock, split spherical roller bearings, 222S.307 bearings dimensions: 87.313mm x 180mm x 46mm, Cr: 285000N, C0r: 360000N.
- Brand: FAG
- Inside Diameter: 87.313 mm
- Outside Diameter: 180 mm
- Width: 46 mm
- Basic dynamic load rating: 285 kN
- Basic static load rating: 285 kN

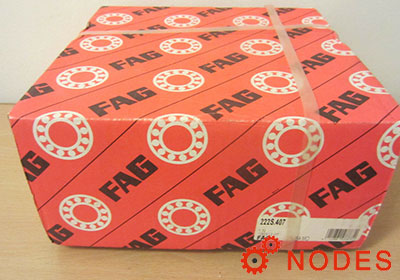

FAG 222S.407 split spherical roller bearings
Nodes bearings have FAG 222S.407 bearings in stock, split spherical roller bearings, 222S.407 bearings dimensions: 112.713mm x 230mm x 64mm, Cr: 540000N, C0r: 720000N.
- Brand: FAG
- Inside Diameter: 112.713 mm
- Outside Diameter: 230 mm
- Width: 64 mm
- Basic dynamic load rating: 540 kN
- Basic static load rating: 540 kN

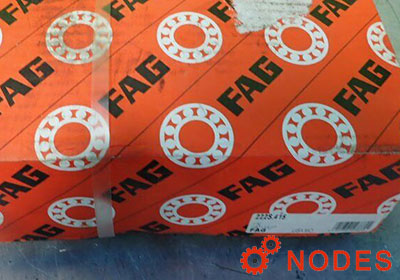

FAG 222S.415 split spherical roller bearings
Nodes bearings have FAG 222S.415 bearings in stock, split spherical roller bearings, 222S.415 bearings dimensions: 125.413mm x 250mm x 68mm, Cr: 630000N, C0r: 870000N.
- Brand: FAG
- Inside Diameter: 125.413 mm
- Outside Diameter: 250 mm
- Width: 68 mm
- Basic dynamic load rating: 630 kN
- Basic static load rating: 630 kN

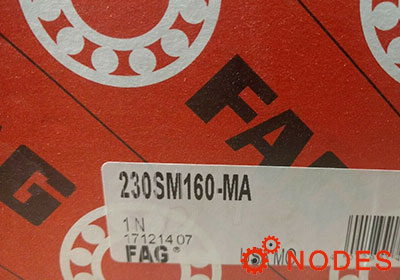

FAG 230SM160-MA split spherical roller bearings
Nodes bearings have FAG 230SM160-MA bearings in stock, split spherical roller bearings, 230SM160-MA bearings dimensions: 160mm x 280mm x 74mm, Cr: 640000N, C0r: 1000000N.
- Brand: FAG
- Inside Diameter: 160 mm
- Outside Diameter: 280 mm
- Width: 74 mm
- Basic dynamic load rating: 640 kN
- Basic static load rating: 640 kN

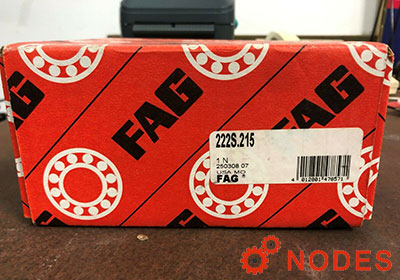

FAG 222S.215 split spherical roller bearings
Nodes bearings have FAG 222S.215 bearings in stock, split spherical roller bearings, 222S.215 bearings dimensions: 74.613mm x 150mm x 36mm, Cr: 184000N, C0r: 237000N.
- Brand: FAG
- Inside Diameter: 74.613 mm
- Outside Diameter: 150 mm
- Width: 36 mm
- Basic dynamic load rating: 184 kN
- Basic static load rating: 184 kN

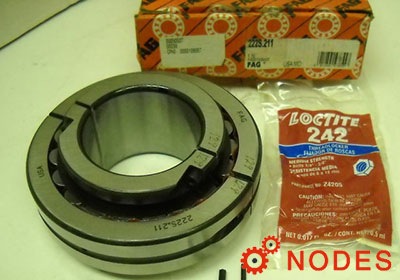

FAG 222S.211 split spherical roller bearings
Nodes bearings have FAG 222S.211 bearings in stock, split spherical roller bearings, 222S.211 bearings dimensions: 68.263mm x 140mm x 33mm, Cr: 180000N, C0r: 226000N.
- Brand: FAG
- Inside Diameter: 68.263 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 180 kN
- Basic static load rating: 180 kN
FAG 222S.203 split spherical roller bearings
Nodes bearings have FAG 222S.203 bearings in stock, split spherical roller bearings, 222S.203 bearings dimensions: 55.563mm x 120mm x 31mm, Cr: 136000N, C0r: 155000N.
- Brand: FAG
- Inside Diameter: 55.563 mm
- Outside Diameter: 120 mm
- Width: 31 mm
- Basic dynamic load rating: 136 kN
- Basic static load rating: 136 kN
FAG 222S.204 split spherical roller bearings
Nodes bearings have FAG 222S.204 bearings in stock, split spherical roller bearings, 222S.204 bearings dimensions: 57.15mm x 120mm x 31mm, Cr: 136000N, C0r: 155000N.
- Brand: FAG
- Inside Diameter: 57.15 mm
- Outside Diameter: 120 mm
- Width: 31 mm
- Basic dynamic load rating: 136 kN
- Basic static load rating: 136 kN
FAG 222S.208 split spherical roller bearings | 63.5x130x31mm
Nodes bearings have FAG 222S.208 bearings in stock, split spherical roller bearings, 222S.208 bearings dimensions: 63.5mm x 130mm x 31mm, Cr: 172000N, C0r: 210000N.
- Brand: FAG
- Inside Diameter: 63.5 mm
- Outside Diameter: 130 mm
- Width: 31 mm
- Basic dynamic load rating: 172 kN
- Basic static load rating: 172 kN
FAG 222S.300 split spherical roller bearings
Nodes bearings have FAG 222S.300 bearings in stock, split spherical roller bearings, 222S.300 bearings dimensions: 76.2mm x 150mm x 36mm, Cr: 184000N, C0r: 237000N.
- Brand: FAG
- Inside Diameter: 76.2 mm
- Outside Diameter: 150 mm
- Width: 36 mm
- Basic dynamic load rating: 184 kN
- Basic static load rating: 184 kN
FAG 222SM55-TVPA split spherical roller bearings
Nodes bearings have FAG 222SM55-TVPA bearings in stock, split spherical roller bearings, 222SM55-TVPA bearings dimensions: 55mm x 110mm x 28mm, Cr: 110000N, C0r: 130000N.
- Brand: FAG
- Inside Diameter: 55 mm
- Outside Diameter: 110 mm
- Width: 28 mm
- Basic dynamic load rating: 110 kN
- Basic static load rating: 110 kN
FAG 222SM60-TVPA split spherical roller bearings
Nodes bearings have FAG 222SM60-TVPA bearings in stock, split spherical roller bearings, 222SM60-TVPA bearings dimensions: 60mm x 120mm x 31mm, Cr: 136000N, C0r: 155000N.
- Brand: FAG
- Inside Diameter: 60 mm
- Outside Diameter: 120 mm
- Width: 31 mm
- Basic dynamic load rating: 136 kN
- Basic static load rating: 136 kN
FAG 222SM65-TVPA split spherical roller bearings
Nodes bearings have FAG 222SM65-TVPA bearings in stock, split spherical roller bearings, 222SM65-TVPA bearings dimensions: 65mm x 130mm x 31mm, Cr: 172000N, C0r: 210000N.
- Brand: FAG
- Inside Diameter: 65 mm
- Outside Diameter: 130 mm
- Width: 31 mm
- Basic dynamic load rating: 172 kN
- Basic static load rating: 172 kN
FAG 222S.303 split spherical roller bearings
Nodes bearings have FAG 222S.303 bearings in stock, split spherical roller bearings, 222S.303 bearings dimensions: 80.963mm x 160mm x 40mm, Cr: 213000N, C0r: 270000N.
- Brand: FAG
- Inside Diameter: 80.963 mm
- Outside Diameter: 160 mm
- Width: 40 mm
- Basic dynamic load rating: 213 kN
- Basic static load rating: 213 kN
FAG 222S.304 split spherical roller bearings
Nodes bearings have FAG 222S.304 bearings in stock, split spherical roller bearings, 222S.304 bearings dimensions: 82.55mm x 160mm x 40mm, Cr: 213000N, C0r: 270000N.
- Brand: FAG
- Inside Diameter: 82.55 mm
- Outside Diameter: 160 mm
- Width: 40 mm
- Basic dynamic load rating: 213 kN
- Basic static load rating: 213 kN
FAG 222S.307-MA split spherical roller bearings
Nodes bearings have FAG 222S.307-MA bearings in stock, split spherical roller bearings, 222S.307-MA bearings dimensions: 87.313mm x 180mm x 46mm, Cr: 265000N, C0r: 320000N.
- Brand: FAG
- Inside Diameter: 87.313 mm
- Outside Diameter: 180 mm
- Width: 46 mm
- Basic dynamic load rating: 265 kN
- Basic static load rating: 265 kN
FAG 222S.308-MA split spherical roller bearings
Nodes bearings have FAG 222S.308-MA bearings in stock, split spherical roller bearings, 222S.308-MA bearings dimensions: 88.9mm x 180mm x 46mm, Cr: 265000N, C0r: 320000N.
- Brand: FAG
- Inside Diameter: 88.9 mm
- Outside Diameter: 180 mm
- Width: 46 mm
- Basic dynamic load rating: 265 kN
- Basic static load rating: 265 kN
FAG 222SM70-TVPA split spherical roller bearings
Nodes bearings have FAG 222SM70-TVPA bearings in stock, split spherical roller bearings, 222SM70-TVPA bearings dimensions: 70mm x 140mm x 33mm, Cr: 180000N, C0r: 226000N.
- Brand: FAG
- Inside Diameter: 70 mm
- Outside Diameter: 140 mm
- Width: 33 mm
- Basic dynamic load rating: 180 kN
- Basic static load rating: 180 kN
FAG 222SM75-TVPA split spherical roller bearings
Nodes bearings have FAG 222SM75-TVPA bearings in stock, split spherical roller bearings, 222SM75-TVPA bearings dimensions: 75mm x 150mm x 36mm, Cr: 184000N, C0r: 237000N.
- Brand: FAG
- Inside Diameter: 75 mm
- Outside Diameter: 150 mm
- Width: 36 mm
- Basic dynamic load rating: 184 kN
- Basic static load rating: 184 kN
FAG 230SM110-MA split spherical roller bearings
Nodes bearings have FAG 230SM110-MA bearings in stock, split spherical roller bearings, 230SM110-MA bearings dimensions: 110mm x 180mm x 46mm, Cr: 270000N, C0r: 385000N.
- Brand: FAG
- Inside Diameter: 110 mm
- Outside Diameter: 180 mm
- Width: 46 mm
- Basic dynamic load rating: 270 kN
- Basic static load rating: 270 kN
FAG 230SM115-MA split spherical roller bearings
Nodes bearings have FAG 230SM115-MA bearings in stock, split spherical roller bearings, 230SM115-MA bearings dimensions: 115mm x 200mm x 52mm, Cr: 305000N, C0r: 455000N.
- Brand: FAG
- Inside Diameter: 115 mm
- Outside Diameter: 200 mm
- Width: 52 mm
- Basic dynamic load rating: 305 kN
- Basic static load rating: 305 kN
FAG 230SM125-MA split spherical roller bearings
Nodes bearings have FAG 230SM125-MA bearings in stock, split spherical roller bearings, 230SM125-MA bearings dimensions: 125mm x 210mm x 53mm, Cr: 395000N, C0r: 600000N.
- Brand: FAG
- Inside Diameter: 125 mm
- Outside Diameter: 210 mm
- Width: 53 mm
- Basic dynamic load rating: 395 kN
- Basic static load rating: 395 kN
FAG 222S.308 split spherical roller bearings
Nodes bearings have FAG 222S.308 bearings in stock, split spherical roller bearings, 222S.308 bearings dimensions: 88.9mm x 180mm x 46mm, Cr: 285000N, C0r: 360000N.
- Brand: FAG
- Inside Diameter: 88.9 mm
- Outside Diameter: 180 mm
- Width: 46 mm
- Basic dynamic load rating: 285 kN
- Basic static load rating: 285 kN
FAG 222S.315 split spherical roller bearings
Nodes bearings have FAG 222S.315 bearings in stock, split spherical roller bearings, 222S.315 bearings dimensions: 100.013mm x 200mm x 53mm, Cr: 360000N, C0r: 460000N.
- Brand: FAG
- Inside Diameter: 100.013 mm
- Outside Diameter: 200 mm
- Width: 53 mm
- Basic dynamic load rating: 360 kN
- Basic static load rating: 360 kN
FAG 222S.400 split spherical roller bearings
Nodes bearings have FAG 222S.400 bearings in stock, split spherical roller bearings, 222S.400 bearings dimensions: 101.6mm x 200mm x 53mm, Cr: 360000N, C0r: 460000N.
- Brand: FAG
- Inside Diameter: 101.6 mm
- Outside Diameter: 200 mm
- Width: 53 mm
- Basic dynamic load rating: 360 kN
- Basic static load rating: 360 kN
FAG 222S.403 split spherical roller bearings
Nodes bearings have FAG 222S.403 bearings in stock, split spherical roller bearings, 222S.403 bearings dimensions: 106.363mm x 215mm x 58mm, Cr: 460000N, C0r: 590000N.
- Brand: FAG
- Inside Diameter: 106.363 mm
- Outside Diameter: 215 mm
- Width: 58 mm
- Basic dynamic load rating: 460 kN
- Basic static load rating: 460 kN
FAG 231SM100-MA split spherical roller bearings
Nodes bearings have FAG 231SM100-MA bearings in stock, split spherical roller bearings, 231SM100-MA bearings dimensions: 100mm x 180mm x 56mm, Cr: 310000N, C0r: 430000N.
- Brand: FAG
- Inside Diameter: 100 mm
- Outside Diameter: 180 mm
- Width: 56 mm
- Basic dynamic load rating: 310 kN
- Basic static load rating: 310 kN
FAG 231SM110-MA split spherical roller bearings
Nodes bearings have FAG 231SM110-MA bearings in stock, split spherical roller bearings, 231SM110-MA bearings dimensions: 110mm x 200mm x 62mm, Cr: 395000N, C0r: 570000N.
- Brand: FAG
- Inside Diameter: 110 mm
- Outside Diameter: 200 mm
- Width: 62 mm
- Basic dynamic load rating: 395 kN
- Basic static load rating: 395 kN
FAG 231SM115-MA split spherical roller bearings
Nodes bearings have FAG 231SM115-MA bearings in stock, split spherical roller bearings, 231SM115-MA bearings dimensions: 115mm x 210mm x 64mm, Cr: 490000N, C0r: 700000N.
- Brand: FAG
- Inside Diameter: 115 mm
- Outside Diameter: 210 mm
- Width: 64 mm
- Basic dynamic load rating: 490 kN
- Basic static load rating: 490 kN
FAG 231SM125-MA split spherical roller bearings
Nodes bearings have FAG 231SM125-MA bearings in stock, split spherical roller bearings, 231SM125-MA bearings dimensions: 125mm x 225mm x 68mm, Cr: N, C0r: N.
- Brand: FAG
- Inside Diameter: 125 mm
- Outside Diameter: 225 mm
- Width: 68 mm
- Basic dynamic load rating: 0 kN
- Basic static load rating: 0 kN
FAG 231SM280-MA split spherical roller bearings
Number 231SM280-MA Type Split spherical roller bearings split spherical roller bearings d 280mm D 500mm C 160mm B 218mm r min 5mm m 145kg Mass C r 2330000N Basic dynamic load rating, radial C 0r 3900000N Basic static load rating, radial C ur 270000N
- Brand: FAG
- Inside Diameter: 280 mm
- Outside Diameter: 500 mm
- Width: 160 mm
- Basic dynamic load rating: 2330 kN
- Basic static load rating: 2330 kN
FAG 230SM135-MA split spherical roller bearings
Nodes bearings have FAG 230SM135-MA bearings in stock, split spherical roller bearings, 230SM135-MA bearings dimensions: 135mm x 225mm x 56mm, Cr: 405000N, C0r: 620000N.
- Brand: FAG
- Inside Diameter: 135 mm
- Outside Diameter: 225 mm
- Width: 56 mm
- Basic dynamic load rating: 405 kN
- Basic static load rating: 405 kN
FAG 230SM140-MA split spherical roller bearings
Nodes bearings have FAG 230SM140-MA bearings in stock, split spherical roller bearings, 230SM140-MA bearings dimensions: 140mm x 240mm x 60mm, Cr: 445000N, C0r: 690000N.
- Brand: FAG
- Inside Diameter: 140 mm
- Outside Diameter: 240 mm
- Width: 60 mm
- Basic dynamic load rating: 445 kN
- Basic static load rating: 445 kN
FAG 230SM150-MA split spherical roller bearings
Nodes bearings have FAG 230SM150-MA bearings in stock, split spherical roller bearings, 230SM150-MA bearings dimensions: 150mm x 260mm x 67mm, Cr: 510000N, C0r: 790000N.
- Brand: FAG
- Inside Diameter: 150 mm
- Outside Diameter: 260 mm
- Width: 67 mm
- Basic dynamic load rating: 510 kN
- Basic static load rating: 510 kN
FAG 230SM170-MA split spherical roller bearings
Nodes bearings have FAG 230SM170-MA bearings in stock, split spherical roller bearings, 230SM170-MA bearings dimensions: 170mm x 290mm x 75mm, Cr: 790000N, C0r: 1240000N.
- Brand: FAG
- Inside Diameter: 170 mm
- Outside Diameter: 290 mm
- Width: 75 mm
- Basic dynamic load rating: 790 kN
- Basic static load rating: 790 kN
FAG 230SM180-MA split spherical roller bearings
Nodes bearings have FAG 230SM180-MA bearings in stock, split spherical roller bearings, 230SM180-MA bearings dimensions: 180mm x 310mm x 82mm, Cr: 790000N, C0r: 1270000N.
- Brand: FAG
- Inside Diameter: 180 mm
- Outside Diameter: 310 mm
- Width: 82 mm
- Basic dynamic load rating: 790 kN
- Basic static load rating: 790 kN
