IKO CF12BUU cam followers
Also known as : CF12BUU, KR30-PP
- D: 30 mm
- d1: 12 mm
- C: 14 mm
- Cr: 7.91 kN
- C0r: 9.79 kN
IKO CF12BUU

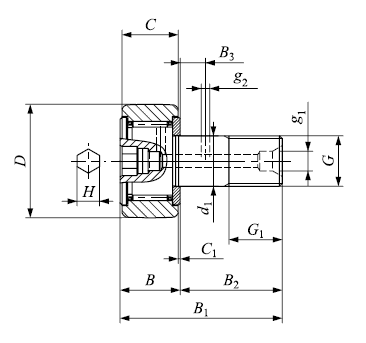

IKO CF12BUU Cam Follower Bearing details
| model |
CF12BUU Cylindrical outer ring |
|---|---|
| D | 30 mm |
| C | 14 mm |
| d1 | 12 mm |
| G | M12x1.5 |
| G1 | 13 mm |
| B | 15.2max mm |
| B1 | 40.2max mm |
| B2 | 25 mm |
| B3 | 6 mm |
| C1 | 0.6 mm |
| g1 | 4 mm |
| g2 | 3 mm |
| H | 6 mm |
| rs min | 0.6 mm |
| fmin | 21 mm, Mounting dimension |
| Maximum tightening torque | 21.9 N.m |
| C | 7910 N, Basic dynamic load rating |
| C0 | 9790 N, Basic static load rating |
| Maximum allowable load | 9790 N |
| Mass | 95 g (approx.) |
IKO CF12BUU cam followers, Cam follower bearings, Cylindrical outer ring, Sealed type.
IKO CF12BUU bearing cross reference
INA KR30-PP bearing
D:30mm, d1:12mm, B:40mm
INA KR30 bearing
D:30mm, d1:12mm, B:40mm
IKO CF12BR bearing
D:30mm, d1:12mm, C:14mm
IKO CF12B bearing
D:30mm, d1:12mm, C:14mm
IKO CF12BUUR bearing
D:30mm, d1:12mm, C:14mm
IKO CF12FBR bearing
D:30mm, d1:12mm, C:14mm
IKO CF12FBUUR bearing
D:30mm, d1:12mm, C:14mm
SKF KR30B bearing
D:30mm, d:12mm, B:40mm
SKF KR30PPA bearing
D:30mm, d:12mm, B:40mm
