SKF KR30PPA cam followers | Dimensions D:30mm, d:12mm, B:40m
Also known as : KR30PPA
- D: 30 mm
- d: 12 mm
- B: 40 mm
- Cr: 6.44 kN
- C0r: 8 kN
SKF KR30PPA Bearing
SKF KR30PPA Bearing details
| Number | KR 30 PPA |
|---|---|
| Type | SKF cam follower with an axial sliding ring on both sides |

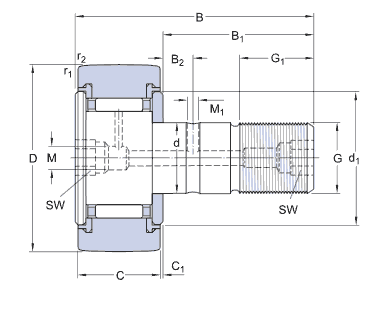

| Dimensions | |
| D | 30 mm |
| d | 12 mm |
| B | 40 mm |
| C | 14 mm |
| B1 | 25 mm |
| B2 | 6 mm |
| C1 | 0.6 mm |
| d1 | 23 mm |
| G | M 12x1.5 |
| G1 | 13 mm |
| M | 4 mm |
| M1 | 3 mm |
| SW | 6 mm |
| r1,2 min | 0.6 mm |
| Calculation data | |
| Basic dynamic load rating, C | 6.44 KN |
| Basic static load rating, C0 | 8 KN |
| Fatigue load limit, Pu | 0.88 KN |
| Maximum dynamic radial loads, Fr max. | 7.8 KN |
| Maximum static radial loads, F0r max. | 11.2 KN |
| Limiting speed | 4800 r/min |
| Mounting information | |
| Recommended tighthening torque | 22 N.M |
| Included products | |
| Grease fitting | NIP A1x4.5 |
| Hexagonal nut | M 12x1.5 |
| Mass | |
| Mass cam follower | 0.088 kg |
SKF KR30PPA bearing cross reference
INA KR30-PP bearing
D:30mm, d1:12mm, B:40mm
INA KR30 bearing
D:30mm, d1:12mm, B:40mm
IKO CF12BR bearing
D:30mm, d1:12mm, C:14mm
IKO CF12B bearing
D:30mm, d1:12mm, C:14mm
IKO CF12BUUR bearing
D:30mm, d1:12mm, C:14mm
IKO CF12BUU bearing
D:30mm, d1:12mm, C:14mm
IKO CF12FBR bearing
D:30mm, d1:12mm, C:14mm
IKO CF12FBUUR bearing
D:30mm, d1:12mm, C:14mm
SKF KR30B bearing
D:30mm, d:12mm, B:40mm
SKF KR30XB bearing
D:30mm, d:12mm, B:40mm
SKF KRV30PPA bearing
D:30mm, d:12mm, B:40mm
