IKO TAFI385320 Bearing

IKO TAFI385320 needle bearings

Also known as : TAFI385320, NKI38/20

  • Inside Diameter: 38 mm
  • Outside Diameter: 53 mm
  • Width: 20 mm
  • Basic dynamic load rating: 30.5 kN
  • Basic static load rating: 58.2 kN

Inquire Now


IKO TAFI385320 needle bearing

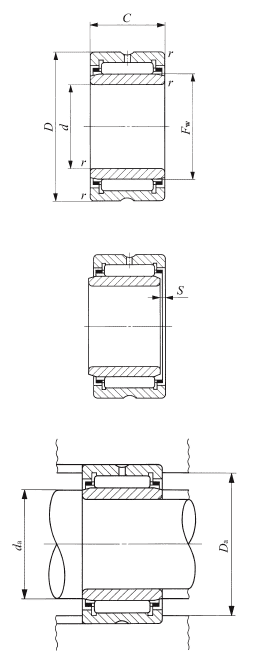

IKO TAFI385320 Bearing details

modelTAFI385320
d38 mm
D53 mm
C20 mm
Fw43 mm
rs min0.3 mm
S0.3 mm
da min40 mm
da max42 mm
Da max51 mm
C30500 N, Basic dynamic load rating
C058200 N, Basic static load rating
Allowable rotational speed9500 rpm
Assembled inner ringLRT384320
Mass136 g (approx.)

Nodes bearings, IKO needle roller bearings wholesaler, have IKO TAFI385320 needle bearings in stock. machined type Needle roller bearings with inner ring.

IKO TAFI385320 bearing cross reference

IKO GTR 385230 bearing
D:38mm * 52mm * 30mm
IKO TAF 384820 bearing
D:38mm * 48mm * 20mm
IKO TAF 384830 bearing
D:38mm * 48mm * 30mm
IKO TAFI385330 bearing
38mm * 53mm * 30mm
IKO TR 385230 bearing
D:38mm * 52mm * 30mm
INA NKI38/20-XL bearing
38mm x 53mm x 20mm
IKO TA 3815Z bearing
38mm * 48mm * 15mm
IKO TA 3820Z bearing
38mm * 48mm * 20mm
IKO TA 3825Z bearing
38mm * 48mm * 25mm
IKO TA 3830Z bearing
38mm * 48mm * 30mm
IKO TA 3845Z bearing
38mm * 48mm * 45mm
IKO TAM 3815 bearing
38mm * 48mm * 15mm
