INA NKI38/20-XL Bearing

INA NKI38/20-XL needle bearings

Also known as : NKI38/20-XL

  • Inside Diameter: 38 mm
  • Outside Diameter: 53 mm
  • Width: 20 mm
  • Basic dynamic load rating: 30.5 kN
  • Basic static load rating: 51 kN

Inquire Now


INA NKI38/20-XL Bearing

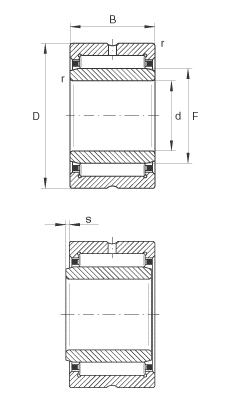

INA NKI38/20-XL Bearing details

d 38 mm
D 53 mm
B 20 mm
F 43 mm
rmin 0,3 mm
s 0,5 mm  Axial displacement
m 136 g  Mass
Cr 30500 N  Basic dynamic load rating, radial
C0r 51000 N  Basic static load rating, radial
Cur 8900 N  Fatigue limit load, radial
nG 10700 1/min  Limiting speed
nB 6000 1/min  Reference speed

As INA bearing distributor, Nodes bearings have INA NKI38/20-XL needle bearings in stock, light series.

INA NKI38/20-XL bearing cross reference

IKO TAFI385320 bearing
38mm * 53mm * 20mm
INA IR38X43X20-XL bearing
38mm x 43mm x 20mm
INA IR38X43X30-XL bearing
38mm x 43mm x 30mm
INA NK38/20-XL bearing
38mm x 48mm x 20mm
INA NK38/30-XL bearing
38mm x 48mm x 30mm
INA NKI38/30-XL bearing
38mm x 53mm x 30mm
INA K38X43X17 bearing
38mm x 43mm x 17mm
INA K38X43X27 bearing
38mm x 43mm x 27mm
INA K38X46X20 bearing
38mm x 46mm x 20mm
INA K38X46X32 bearing
38mm x 46mm x 32mm
