IKO GE35GS Bearing

IKO GE35GS spherical plain bearings | 35x62x35mm

Also known as : GE35GS

  • Inside Diameter: 35 mm
  • Outside Diameter: 62 mm
  • Width: 35 mm
  • Basic dynamic load rating: 114 kN
  • Basic static load rating: 686 kN

Inquire Now


IKO GE35GS

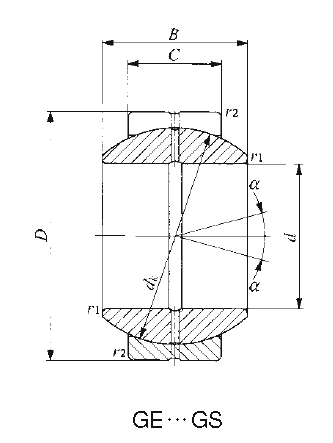

IKO GE35GS Bearing details

Identification number GE35GS
Type Spherical plain bearings
Mass 0.4 kg
d 35 mm
D 62 mm
B 35
C 22 mm
dk 53 mm
r1s min 0.6 mm
r2s min 1 mm
Permissible tilting angle degree a 16
Dynamic load capacity 114 kN
Static load capacity 686 kN

Nodes bearings have IKO GE35GS spherical bushings, Steel-on-steel Spherical Bushings, in stock.
