INA AY15-XL-NPP-B bearing | 15x40x22 mm
Also known as : AY15-XL-NPP-B
- Inside Diameter: 15 mm
- Outside Diameter: 40 mm
- Width: 22 mm
- Basic dynamic load rating: 10.1 kN
- Basic static load rating: 4.75 kN
INA AY15-XL-NPP-B Bearing

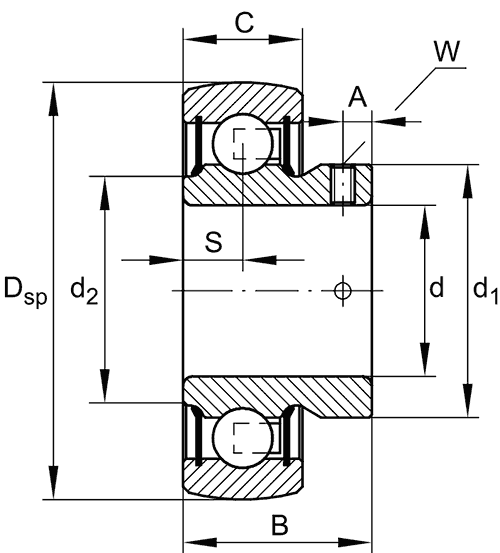

INA AY15-XL-NPP-B Bearing details
| Number | AY15-XL-NPP-B | |
|---|---|---|
| Type |
Radial insert ball bearings spherical outer ring, location by grub screws, P seals on both sides |
|
| d | 15mm | |
| DSP | 40mm | |
| B | 22mm | |
| A | 4mm | |
| C | 12mm | |
| d1 | 23,9mm | |
| d2 | 22,9mm | |
| S | 6mm | |
| W | 2,5mm | |
| m | 0,09kg | Mass |
| Cr | 10100N | Basic dynamic load rating, radial |
| C0r | 4750N | Basic static load rating, radial |
| Cur | 241N | Fatigue limit load, radial |
| f0 | 13,1 | Calculation factor |
As INA bearing distributor, Nodes bearings have INA AY15-XL-NPP-B Insert ball bearings in stock. AY15-XL-NPP-B, spherical outer ring, location by grub screws, P seals on both sides.
