INA GRAE15-XL-NPP-B bearing | 15x40x28.6 mm
Also known as : GRAE15-XL-NPP-B
- Inside Diameter: 15 mm
- Outside Diameter: 40 mm
- Width: 28.6 mm
- Basic dynamic load rating: 10.1 kN
- Basic static load rating: 4.75 kN
INA GRAE15-XL-NPP-B Bearing
INA GRAE15-XL-NPP-B Bearing details

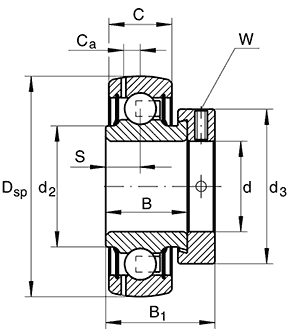

| Number | GRAE15-XL-NPP-B | |
|---|---|---|
| Type |
Radial insert ball bearings spherical outer ring, location by eccentric locking collar, P seals on both sides |
|
| d | 15mm | |
| DSP | 40mm | |
| B1 | 28,6mm | |
| B | 19mm | |
| C | 12mm | |
| Ca | 3,4mm | |
| d2 | 23mm | |
| d3 max | 28,4mm | |
| S | 6,5mm | |
| W | 3mm | |
| m | 0,11kg | Mass |
| Cr | 10100N | Basic dynamic load rating, radial |
| C0r | 4750N | Basic static load rating, radial |
| Cur | 241N | Fatigue limit load, radial |
| f0 | 13,1 | Calculation factor |
As INA bearing distributor, Nodes bearings have INA GRAE15-XL-NPP-B Insert ball bearings in stock. GRAE15-XL-NPP-B, spherical outer ring, location by eccentric locking collar, P seals on both sides.
INA GRAE15-XL-NPP-B bearing cross reference
INA AY15-XL-NPP-B bearing
15x40x22 mm
INA GAY15-XL-NPP-B bearing
15x40x22 mm
