INA NA6908-ZW-XL needle bearings
Also known as : NA6908-ZW
- Inside Diameter: 40 mm
- Outside Diameter: 62 mm
- Width: 40 mm
- Basic dynamic load rating: 74 kN
- Basic static load rating: 116 kN
INA NA6908-ZW-XL Bearing

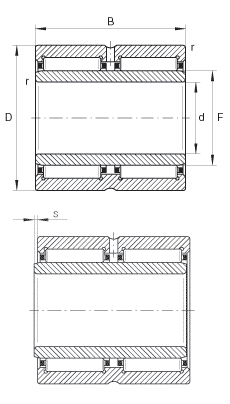

INA NA6908-ZW-XL Bearing details
d | 40 mm | |
---|---|---|
D | 62 mm | |
B | 40 mm | |
F | 48 mm | |
rmin | 0,6 mm | |
s | 0,5 mm | Axial displacement |
m | 430 g | Mass |
Cr | 74000 N | Basic dynamic load rating, radial |
C0r | 116000 N | Basic static load rating, radial |
Cur | 19400 N | Fatigue limit load, radial |
nG | 9200 1/min | Limiting speed |
nB | 5100 1/min | Reference speed |
Double row |
As INA bearing distributor, Nodes bearings have INA NA6908-ZW-XL needle bearings in stock, Dimension series 69, double row.
