INA NAO6X17X10-TV-IS1-XL Bearing

INA NAO6X17X10-TV-IS1-XL needle bearings

Also known as : NAO6X17X10-TV-IS1-XL

  • Inside Diameter: 6 mm
  • Outside Diameter: 17 mm
  • Width: 10 mm
  • Basic dynamic load rating: 5.3 kN
  • Basic static load rating: 5.5 kN

Inquire Now


INA NAO6X17X10-TV-IS1-XL Bearing

INA NAO6X17X10-TV-IS1-XL Bearing details

d 6 mm
D 17 mm
B 10 mm
Da 13,3 mm
Db 10,3 mm
da 9,7 mm
db 12,7 mm
E 13 mm
F 10 mm
ra max 0,3 mm
rmin 0,3 mm
s 0,5 mm  Axial displacement
m 14 g  Mass
Cr 5300 N  Basic dynamic load rating, radial
C0r 5500 N  Basic static load rating, radial
Cur 930 N  Fatigue limit load, radial
nG 29500 1/min  Limiting speed
nB 23800 1/min  Reference speed
    With lubrication hole in inner ring.

As INA bearing distributor, Nodes bearings have INA NAO6X17X10-TV-IS1-XL needle bearings in stock.

INA NAO6X17X10-TV-IS1-XL bearing cross reference

INA HK0606 bearing
6mm x 10mm x 6mm

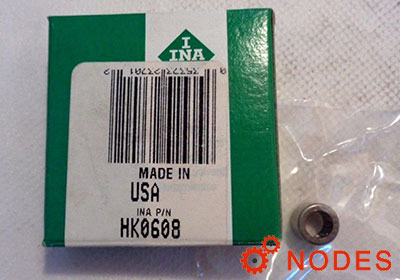

INA HK0608 bearing
6mm x 10mm x 8mm

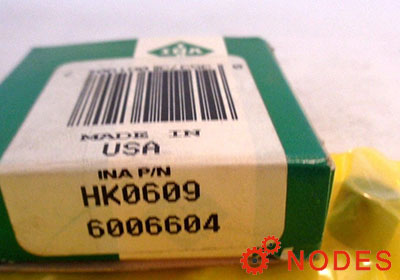

INA HK0609 bearing
