INA GAR70-UK-2RS Rod ends | d:70,d2:160,l2:315mm
Also known as : GAR70-UK-2RS
- d: 70 mm
- d2: 160 mm
- Height: 315 mm
- Basic dynamic load rating: 885 kN
- Basic static load rating: 564 kN
INA GAR70-UK-2RS Bearing

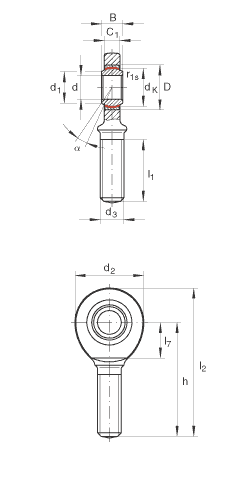

INA GAR70-UK-2RS Bearing details
| Number | GAR70-UK-2RS | |
|---|---|---|
| Type |
Rod ends with external thread, maintenance-free, to DIN ISO 12 240-4, lip seals on both sides, right hand thread |
|
| d | 70 mm | Tolerance: 0/-0,015 |
| d2 | 160 mm | |
| l2 | 315 mm | |
| B | 49 mm | Tolerance: 0/-0,15 |
| C1 | 42 mm | |
| D | 105 mm | |
| d1 | 77,8 mm | |
| d3 | M56x4 | |
| dK | 92 mm | |
| h | 235 mm | |
| l1 | 125 mm | |
| l7 | 87 mm | |
| r1s min | 1 mm | Chamfer dimension |
| α | 6 ° | |
| m | 8,2 kg | Mass |
| Cr | 885000 N | Basic dynamic load rating, radial |
| C0r | 564000 N |
Basic static load rating, radial Basic load rating of housing In rod ends with the sliding material ELGOGLIDE, the basic static load rating C 0r of the housing is less than the basic dynamic load rating C r of the bearing. |
As INA bearing distributor, Nodes bearings have INA GAR70-UK-2RS Rod end bearings in stock. GAR70-UK-2RS, with external thread, maintenance-free, to DIN ISO 12 240-4, lip seals on both sides, right hand thread.
