INA GE10-PW Bearing

INA GE10-PW plain bearings | 10x22x14mm

Also known as : GE10-PW

• Inside Diameter: 10 mm
• Outside Diameter: 22 mm
• Width: 14 mm
• Basic dynamic load rating: 18.1 kN
• Basic static load rating: 45.2 kN

Inquire Now

INA GE10-PW Bearing

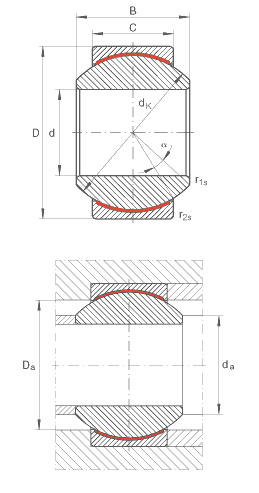

Number	GE10-PW
Type	Spherical plain bearings
d	10 mm	Bore tolerance: H7 (arithmetic mean value) Tolerance: +0,015/0
D	22 mm	Tolerance: 0/-0,009
B	14 mm	Tolerance: 0/-0,12
C	10,5 mm	Tolerance: 0/-0,24
Da min	17 mm
da max	12,9 mm
dK	19,05 mm
r1s min	0,3 mm	Chamfer dimension
r2s min	0,3 mm	Chamfer dimension
α	13 °
m	0,027 kg	Mass
Cr	18100 N	Basic dynamic load rating, radial
C0r	45200 N	Basic static load rating, radial

As INA bearing distributor, Nodes bearings have INA GE10-PW radial spherical plain bearings in stock. GE10-PW, dimension series K, maintenance-free, to DIN ISO 12 240-1.
