INA GE200-LO plain bearings | 200x290x200mm
Also known as : GE200-LO
- Inside Diameter: 200 mm
- Outside Diameter: 290 mm
- Width: 200 mm
- Basic dynamic load rating: 2130 kN
- Basic static load rating: 10600 kN
INA GE200-LO Bearing
INA GE200-LO Bearing details

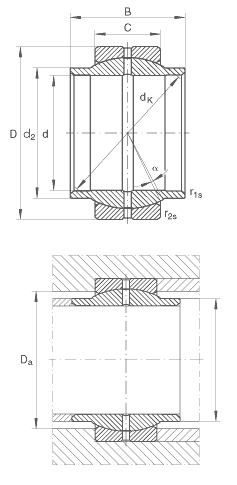

Number | GE200-LO | |
---|---|---|
Type | Spherical plain bearings | |
d | 200 mm | Tolerance: +0,046/0 |
D | 290 mm | Tolerance: 0/-0,035 |
B | 200 mm | Tolerance: 0/-0,46 |
C | 100 mm | Tolerance: 0/-0,7 |
Da min | 239 mm | |
d2 | 221 mm | d2 = da max |
dK | 250 mm | |
r1s min | 1,1 mm | Chamfer dimension |
r2s min | 1,1 mm | Chamfer dimension |
α | 4 ° | |
m | 32,5 kg | Mass |
Cr | 2130000 N | Basic dynamic load rating, radial |
C0r | 10600000 N | Basic static load rating, radial |
As INA bearing distributor, Nodes bearings have INA GE200-LO radial spherical plain bearings in stock. GE200-LO, requiring maintenance, to DIN ISO 12 240-1.
