INA GE50-DO-2RS Bearing

INA GE50-DO-2RS plain bearings | 50x75x35mm

Also known as : GE50-DO-2RS

• Inside Diameter: 50 mm
• Outside Diameter: 75 mm
• Width: 35 mm
• Basic dynamic load rating: 157 kN
• Basic static load rating: 785 kN

Inquire Now

INA GE50-DO-2RS Bearing

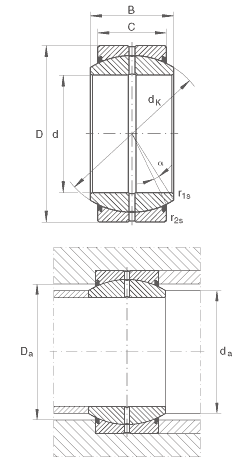

Number	GE50-DO-2RS
Type	Spherical plain bearings
d	50 mm	Tolerance: 0/-0,012
D	75 mm	Tolerance: 0/-0,013
B	35 mm	Tolerance: 0/-0,12
C	28 mm	Tolerance: 0/-0,3
Da min	63 mm
da max	55,9 mm
dK	66 mm
r1s min	0,6 mm	Chamfer dimension
r2s min	1 mm	Chamfer dimension
α	6 °
m	0,53 kg	Mass
Cr	157000 N	Basic dynamic load rating, radial
C0r	785000 N	Basic static load rating, radial

As INA bearing distributor, Nodes bearings have INA GE50-DO-2RS radial spherical plain bearings in stock. GE50-DO-2RS, requiring maintenance, to DIN ISO 12 240-1, lip seals on both sides.
