SKF GEH50TXE-2LS Bearing

SKF GEH50TXE-2LS spherical plain bearings | 50x90x56mm

Also known as : GEH50TXE-2LS, GE50-FW-2TS

  • Inside Diameter: 50 mm
  • Outside Diameter: 90 mm
  • Width: 56 mm
  • Basic dynamic load rating: 695 kN
  • Basic static load rating: 1160 kN

Inquire Now


SKF GEH50TXE-2LS Bearing

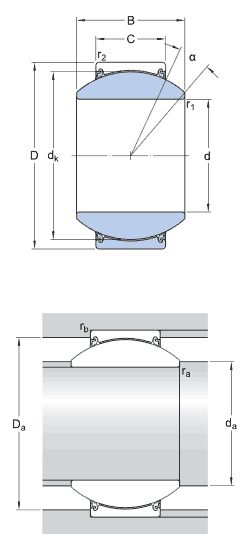

SKF GEH50TXE-2LS Bearing details

number GEH50TXE-2LS
Type maintenance-free radial spherical plain bearings
d 50 mm
D 90 mm
B 56 mm
C 36 mm
α 17 °
dk 80 mm
r1 min. 0.6 mm
r2 min. 1 mm
da min. 56 mm
da max. 57.1 mm
Da min. 80 mm
Da max. 84 mm
ra max. 0.6 mm
rb max. 1 mm
Calculation data
Basic dynamic load rating C 695 kN
Basic static load rating C0 1160 kN
Specific dynamic load factor K 300 N/mm²
Specific static load factor K0 500 N/mm²
Mass 1.41 kg

As SKF bearing distributor, Nodes bearings have SKF GEH50TXE-2LS spherical plain bearings in stock.
