INA GE8-UK plain bearings | 8x16x8mm
Also known as : GE8-UK
- Inside Diameter: 8 mm
- Outside Diameter: 16 mm
- Width: 8 mm
- Basic dynamic load rating: 5.85 kN
- Basic static load rating: 14.6 kN
INA GE8-UK Bearing

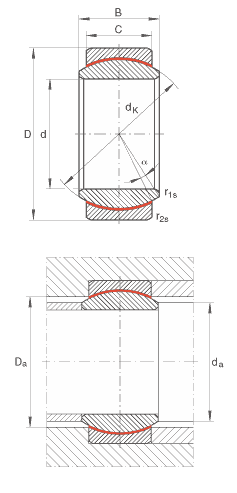

INA GE8-UK Bearing details
| Number | GE8-UK | |
|---|---|---|
| Type | Spherical plain bearings | |
| d | 8 mm | Tolerance: 0/-0,008 |
| D | 16 mm | Tolerance: 0/-0,008 |
| B | 8 mm | Tolerance: 0/-0,12 |
| C | 5 mm | Tolerance: 0/-0,24 |
| Da min | 12,5 mm | |
| da max | 10,2 mm | |
| dK | 13 mm | |
| r1s min | 0,3 mm | Chamfer dimension |
| r2s min | 0,3 mm | Chamfer dimension |
| α | 15 ° | |
| m | 0,007 kg | Mass |
| Cr | 5850 N | Basic dynamic load rating, radial |
| C0r | 14600 N | Basic static load rating, radial |
As INA bearing distributor, Nodes bearings have INA GE8-UK radial spherical plain bearings in stock. GE8-UK, maintenance-free, to DIN ISO 12 240-1.
