NSK 51215 Thrust Ball Bearings
Also known as : 51215
- Inside Diameter: 75 mm
- Outside Diameter: 110 mm
- Width: 27 mm
- Basic dynamic load rating: 78 kN
- Basic static load rating: 209 kN
NSK 51215 Bearing
NSK 51215 Bearing details
| model | 51215 |
|---|---|
| d | 75 mm |
| D | 110 mm |
| T | 27 mm |
| d1 | 110 mm |
| D1 | 77 mm |
| rmin. | 1.0 mm |
| Ca | 78000 N |
| C0a | 209000 N |
| Limiting speeds | 1800 min-1 (Grease) |
| Limiting speeds | 2800 min-1 (Oil) |
| da | 96 mm |
| Da | 89 mm |
| ra | 1.0 mm |
| Mass | 0.845 kg (approx.) |
As a NSK Bearing distributor, Nodes bearings have NSK 51215 thrust ball bearings in stock. more related bearings: Thrust ball bearings.
NSK 51215 bearing cross reference

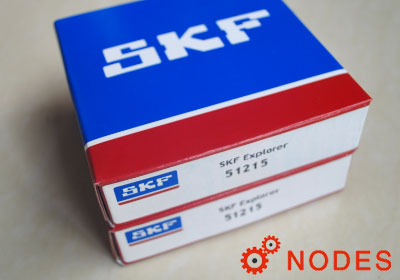

SKF 51215 bearing
75mm x 110mm x 27mm
NSK 51115 bearing
75mm x 100mm x 19mm
NSK 51315 bearing
75mm x 135mm x 44mm
NSK 51415 bearing
75mm x 160mm x 65mm
NSK 53215 bearing
75mm x 110mm x 28.3mm
NSK 53315 bearing
75mm x 135mm x 48.1mm
NSK 53415 bearing
75mm x 160mm x 69mm
NSK 53215U bearing
75mm x 110mm x 32mm
NSK 53315U bearing
75mm x 135mm x 52mm
NSK 53415U bearing
75mm x 160mm x 75mm
