NSK 6003DDU Bearing

NSK 6003DDU deep groove ball bearing with two contact sealed

Also known as : 6003DDU, 6003-2RS, 6003LLU

  • Inside Diameter: 17 mm
  • Outside Diameter: 35 mm
  • Width: 10 mm
  • Basic dynamic load rating: 6 kN
  • Basic static load rating: 3.25 kN

Inquire Now


NSK 6003DDU Bearing

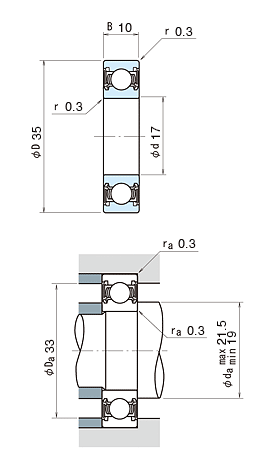

NSK 6003DDU Bearing details

model 6003DDU
d 17 mm
D 35 mm
B 10 mm
rmin. 0.3 mm
Cr 6000 N
C0r 3250 N
Limiting speeds 13000 min-1 (Grease)
Mass 0.041 kg (approx.)

DDU: With Two Contact Sealed
