NSK 6303DDU Bearing

NSK 6303DDU Deep groove ball bearings

Also known as : 6303DDU, 6303LLU, 6303-2RS1, 6303-2RSR

• Inside Diameter: 17 mm
• Outside Diameter: 47 mm
• Width: 14 mm
• Basic dynamic load rating: 13.6 kN
• Basic static load rating: 6.65 kN

Inquire Now

NSK 6303DDU Bearing

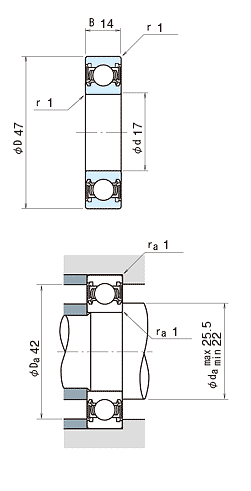

model	6303DDU
d	17 mm
D	47 mm
B	14 mm
rmin.	1.0 mm
Cr	13600 N 1390 kgf
C0r	6650 N 675 kgf
Limiting speeds	11000 min-1 (Grease)
f0	12.4 (Factor)
da min	22 mm
da max	25.5 mm
Da	42 mm
ra	1 mm
Mass	0.113 kg (approx.)

NSK 6303DDU ball bearings, deep groove ball bearing, Single-Row, DDU: With Two Contact Sealed.
