NSK 6004ZZ deep groove ball bearing with two shielded
Also known as : 6004ZZ, 6004-2Z, 6004Z
- Inside Diameter: 20 mm
- Outside Diameter: 42 mm
- Width: 12 mm
- Basic dynamic load rating: 9.4 kN
- Basic static load rating: 5 kN
NSK 6004ZZ Bearing

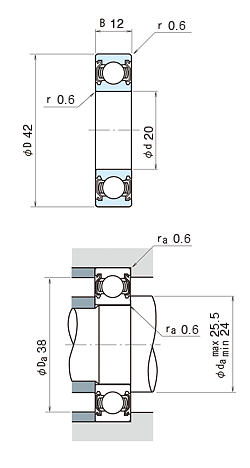

NSK 6004ZZ Bearing details
| model | 6004ZZ |
|---|---|
| d | 20 mm |
| D | 42 mm |
| B | 12 mm |
| rmin. | 0.6 mm |
| Cr | 9400 N |
| C0r | 5000 N |
| Limiting speeds | 18000 min-1 (Grease) |
| Mass | 0.068 kg (approx.) |
ZZ: With Two Shielded
NSK 6004ZZ bearing cross reference
NSK 6204DDU bearing
20mm x 47mm x 14mm
NSK 6204VV bearing
20mm x 47mm x 14mm
SKF 6004-2Z bearing
20mm x 42mm x 12mm
SKF 6004-2RSH bearing
20mm x 42mm x 12mm
NSK 6804 bearing
20mm x 32mm x 7mm
NSK 6904 bearing
20mm x 37mm x 9mm
NSK 16004 bearing
20mm x 42mm x 8mm
NSK 6004 bearing
20mm x 42mm x 12mm
NSK 6204 bearing
20mm x 47mm x 14mm
NSK 6304 bearing
20mm x 52mm x 15mm
NSK 6804ZZ bearing
20mm x 32mm x 7mm
