NSK 6204DDU Bearing

NSK 6204DDU single row deep groove ball bearing

Also known as : 6204DDU, 6204-2RS1, 6204-2RSR, 6204LLU

  • Inside Diameter: 20 mm
  • Outside Diameter: 47 mm
  • Width: 14 mm
  • Basic dynamic load rating: 12.8 kN
  • Basic static load rating: 6.6 kN

Inquire Now


NSK 6204DDU Bearing

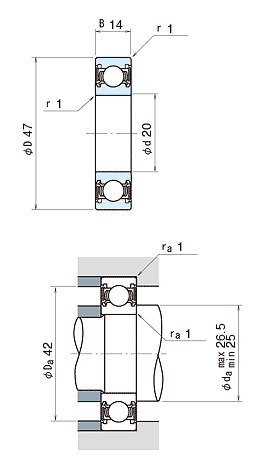

NSK 6204DDU Bearing details

model 6204DDU
d 20 mm
D 47 mm
B 14 mm
rmin. 1 mm
Cr 12800 N
C0r 6600 N
Limiting speeds 11000 min-1 (Grease)
Mass 0.107 kg (approx.)

DDU: with two contact sealed.

NSK 6204DDU bearing cross reference

NSK 6004ZZ bearing
20mm x 42mm x 12mm
SKF 6204-2RSH bearing
20mm x 47mm x 14mm
NSK 6204VV bearing
20mm x 47mm x 14mm
SKF 6204-2Z bearing
20mm x 47mm x 14mm
NSK 6804 bearing
20mm x 32mm x 7mm
NSK 6904 bearing
20mm x 37mm x 9mm
NSK 16004 bearing
20mm x 42mm x 8mm
NSK 6004 bearing
20mm x 42mm x 12mm
NSK 6204 bearing
20mm x 47mm x 14mm
NSK 6304 bearing
20mm x 52mm x 15mm
NSK 6804ZZ bearing
20mm x 32mm x 7mm
NSK 6904ZZ bearing
20mm x 37mm x 9mm
