NSK 6202ZZ Bearing

NSK 6202ZZ Deep groove ball bearings

Also known as : 6202ZZ, 6202-2Z

  • Inside Diameter: 15 mm
  • Outside Diameter: 35 mm
  • Width: 11 mm
  • Basic dynamic load rating: 7.65 kN
  • Basic static load rating: 3.75 kN

Inquire Now


NSK 6202ZZ Bearing

NSK 6202ZZ Bearing details

model 6202ZZ
d 15 mm
D 35 mm
B 11 mm
rmin. 0.6 mm
Cr 7650 N
780 kgf
C0r 3750 N
380 kgf
Limiting speeds 20000 min-1 (Grease)
f0 13.2 (Factor)
da min 19 mm
da max 20.5 mm
Da 31 mm
ra 0.6 mm
Mass 0.045 kg (approx.)

NSK 6202ZZ ball bearings, deep groove ball bearing, Single-Row, ZZ: With Two Shielded.

NSK 6202ZZ bearing cross reference

NSK 6002ZZNR bearing
15mm x 32mm x 9mm
NSK 6802ZZ bearing
15mm x 24mm x 5mm
SKF 6202-2Z bearing
15mm x 35mm x 11mm
SKF 6202-2Z/C3 bearing
15mm x 35mm x 11mm
SKF 6202-2RSH bearing
15mm x 35mm x 11mm
SKF 6202-2RSH/C3 bearing
15mm x 35mm x 11mm

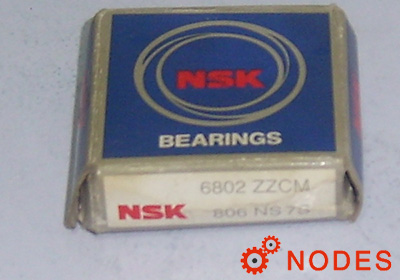

NSK 6802 bearing
15mm x 24mm x 5mm
NSK 6902 bearing
15mm x 28mm x 7mm
NSK 16002 bearing
15mm x 32mm x 8mm
NSK 6002 bearing
15mm x 32mm x 9mm
NSK 6202 bearing
15mm x 35mm x 11mm
NSK 6302 bearing
15mm x 42mm x 13mm
