NSK 6207DDU Bearing

NSK 6207DDU Deep groove ball bearings

Also known as : 6207DDU, 6207LLU, 6207-2RS1, 6207-2RSR

• Inside Diameter: 35 mm
• Outside Diameter: 72 mm
• Width: 17 mm
• Basic dynamic load rating: 25.7 kN
• Basic static load rating: 15.3 kN

Inquire Now

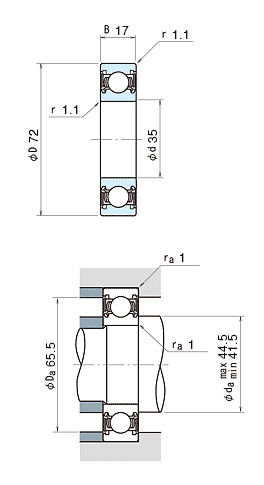

NSK 6207DDU Bearing

model	6207DDU
d	35 mm
D	72 mm
B	17 mm
rmin.	1.1 mm
Cr	25700 N 2620 kgf
C0r	15300 N 1560 kgf
Limiting speeds	6300 min-1 (Grease)
f0	13.8 (Factor)
da min	41.5 mm
da max	44.5 mm
Da	65.5 mm
ra	1 mm
Mass	0.284 kg (approx.)

NSK 6207DDU ball bearings, deep groove ball bearing, Single-Row, DDU: With Two Contact Sealed.
