NSK 6307DDU Bearing

NSK 6307DDU Deep groove ball bearings

Also known as : 6307DDU, 6307LLU, 6307-2RS1, 6307-2RSR

• Inside Diameter: 35 mm
• Outside Diameter: 80 mm
• Width: 21 mm
• Basic dynamic load rating: 33.5 kN
• Basic static load rating: 19.2 kN

Inquire Now

NSK 6307DDU Bearing

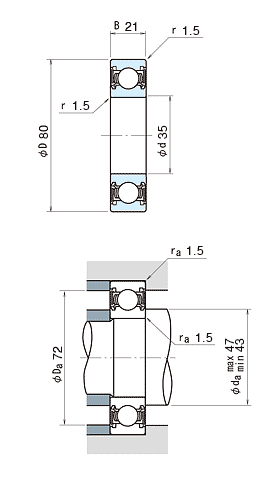

model	6307DDU
d	35 mm
D	80 mm
B	21 mm
rmin.	1.5 mm
Cr	33500 N 3400 kgf
C0r	19200 N 1960 kgf
Limiting speeds	6000 min-1 (Grease)
f0	13.2 (Factor)
da min	43 mm
da max	47 mm
Da	72 mm
ra	1.5 mm
Mass	0.464 kg (approx.)

NSK 6307DDU ball bearings, deep groove ball bearing, Single-Row, DDU: With Two Contact Sealed.
