NSK QJ306 Bearing

NSK QJ306 Four-Point Contact Ball Bearings

Also known as : QJ306,QJ306TVP

  • Inside Diameter: 30 mm
  • Outside Diameter: 72 mm
  • Width: 19 mm
  • Basic dynamic load rating: 46 kN
  • Basic static load rating: 63 kN

Inquire Now


NSK QJ306 Bearing

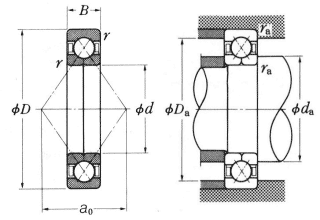

NSK QJ306 Bearing details

model QJ306
d 30 mm
D 72 mm
B 19 mm
rmin. 1.1 mm
Ca 46000 N
4700 kgf
C0a 63000 N
6450 kgf
Limiting speeds 8000 min-1 (Grease)
Limiting speeds 11000 min-1 (Oil)
da 37 mm
Da 65 mm
ra 1.0 mm
Mass 0.42 kg (approx.)

As a NSK Bearing distributor, Nodes bearings have NSK QJ306 four-point contact ball bearings in stock. more related NSK bearings: NSK angular contact ball bearings catalogue.

NSK QJ306 bearing cross reference

NSK 7906A5 bearing
30mm x 47mm x 9mm
NSK 7206B bearing
30mm x 62mm x 16mm
NSK 7306B bearing
30mm x 72mm x 19mm
NSK 7906C bearing
30mm x 47mm x 9mm
NSK 7006C bearing
30mm x 55mm x 13mm
NSK 7206C bearing
30mm x 62mm x 16mm
NSK 7006A bearing
30mm x 55mm x 13mm
NSK 7206A bearing
30mm x 62mm x 16mm
NSK 7306A bearing
30mm x 72mm x 19mm
NSK 7906A5DB bearing
30mm x 47mm x 9mm
NSK 7906CDB bearing
30mm x 47mm x 9mm
NSK 7006ADB bearing
30mm x 55mm x 13mm
