NSK 7016CTYNSULP4 Bearing

7016CTYNSULP4 NSK super precision bearings

Also known as : 7016CD/P4A, B7016-C-T-P4S-UL

• Inside Diameter: 80 mm
• Outside Diameter: 125 mm
• Width: 22 mm
• Basic dynamic load rating: 61.5 kN
• Basic static load rating: 55.5 kN

Inquire Now

NSK 7016CTYNSULP4 Bearing

Part Number	7016CTYNSULP4
Type	Angular contact ball bearings C: Contact Angle of 15°

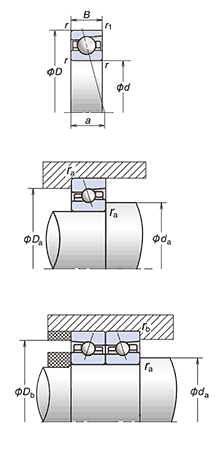

d	80 mm
D	125 mm
B	22 mm
rmin.	1.1 mm
r1min.	0.6 mm
Basic load ratings Cr	61.5 kN (Dynamic)
Basic load ratings C0r	55.5 kN (Static)
Permissible axial load	34.5 kN
Effective load center a	24.7 mm
Contact Angle	15 Degree
Limiting speeds	11300 min-1 (Grease)
Limiting speeds	17100 min-1 (Oil)
Mass (approx.)	0.966 kg
da min.	87 mm
Da max.	118 mm
Db max.	120 mm
ra max.	1 mm
rb max.	0.6 mm

NSK 7016CTYNSULP4 angular contact ball bearings, C: Contact Angle of 15°, Universal conbination bearing, Light preload, Accuracy: ISO class 4
