NSK 21315EAE4 Spherical roller bearings
Also known as : 21315EAE4, 21315CC/W33
- Inside Diameter: 75 mm
- Outside Diameter: 160 mm
- Width: 37 mm
- Basic dynamic load rating: 310 kN
- Basic static load rating: 325 kN
NSK 21315EAE4 Bearing

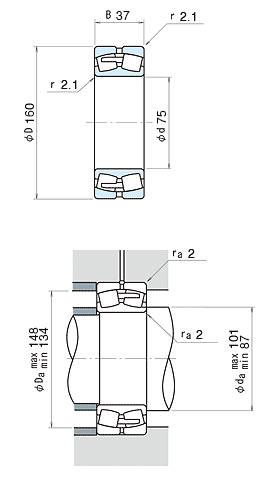

NSK 21315EAE4 Bearing details
| model | 21315EAE4 |
|---|---|
| d | 75 mm |
| D | 160 mm |
| B | 37.0 mm |
| rmin. | 2.1 mm |
| Cr |
310000 N 32000 kgf |
| C0r |
325000 N 33500 kgf |
| Limiting speeds | 3200 min-1 (Grease) |
| Limiting speeds | 4000 min-1 (Oil) |
| da min | 87 mm |
| da max | 101.000 mm |
| Da max | 148 mm |
| Da min | 134 mm |
| ra | 2.0 mm |
| Constant | 0.22 |
| Y2 | 4.6 Axial Load Factors |
| Y3 | 3.1 Axial Load Factors |
| Y0 | 3 Axial Load Factors |
| Mass | 3.64 kg (approx.) |
NSK 21315EAE4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
NSK 21315EAE4 bearing cross reference
FAG 21315-E1-XL bearing
75mm x 160mm x 37mm
NSK 22215EAE4 bearing
75mm x 130mm x 31.0mm
SKF 21315E bearing
75mm x 160mm x 37mm
NSK 21315EAKE4 bearing
75mm x 160mm x 37.0mm
NSK 22215EAKE4 bearing
75mm x 130mm x 31.0mm
NSK 22315EAE4 bearing
75mm x 160mm x 55.0mm
NSK 22315EAKE4 bearing
75mm x 160mm x 55.0mm
FAG 21315-E1-XL-K bearing
75mm x 160mm x 37mm
