NSK 22220EAE4C3 Bearing

NSK 22220EAE4C3 Spherical roller bearings

Also known as : 22220EAE4C3, 22220CC/W33

• Inside Diameter: 100 mm
• Outside Diameter: 180 mm
• Width: 46 mm
• Basic dynamic load rating: 455 kN
• Basic static load rating: 490 kN

Inquire Now

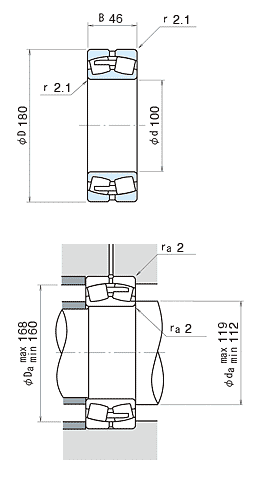

NSK 22220EAE4C3 Bearing

model	22220EAE4C3
d	100 mm
D	180 mm
B	46.0 mm
rmin.	2.1 mm
Cr	455000 N 46500 kgf
C0r	490000 N 50000 kgf
Limiting speeds	2800 min-1 (Grease)
Limiting speeds	3600 min-1 (Oil)
da min	112 mm
da max	119.000 mm
Da max	168 mm
Da min	160 mm
ra	2.0 mm
Constant	0.24
Y2	4.3 Axial Load Factors
Y3	2.9 Axial Load Factors
Y0	2.8 Axial Load Factors
Mass	4.84 kg (approx.)

NSK 22220EAE4C3 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
