NSK 23220CKE4 Bearing

NSK 23220CKE4 Spherical roller bearings

Also known as : 23220CKE4, 23220CC/W33

  • Inside Diameter: 100 mm
  • Outside Diameter: 180 mm
  • Width: 60.3 mm
  • Basic dynamic load rating: 420 kN
  • Basic static load rating: 605 kN

Inquire Now


NSK 23220CKE4 Bearing

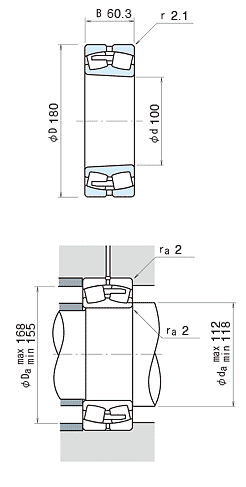

NSK 23220CKE4 Bearing details

model 23220CKE4
d 100 mm
D 180 mm
B 60.3 mm
rmin. 2.1 mm
Cr 420000 N
42500 kgf
C0r 605000 N
61500 kgf
Limiting speeds 1600 min-1 (Grease)
Limiting speeds 2200 min-1 (Oil)
da min 112 mm
da max 118 mm
Da max 168 mm
Da min 155 mm
ra 2.0 mm
Constant 0.32
Y2 3.2 Axial Load Factors
Y3 2.1 Axial Load Factors
Y0 2.1 Axial Load Factors
Mass 6.58 kg (approx.)

NSK 23220CKE4 roller bearings with Tapered Bore, spherical roller bearing, double-Row.
