NSK 22226CAME4C3 Spherical roller bearings
Also known as : 22226CAME4C3, 22226CC/W33C3
- Inside Diameter: 130 mm
- Outside Diameter: 230 mm
- Width: 64 mm
- Basic dynamic load rating: 820 kN
- Basic static load rating: 940 kN
NSK 22226CAME4C3 Bearing

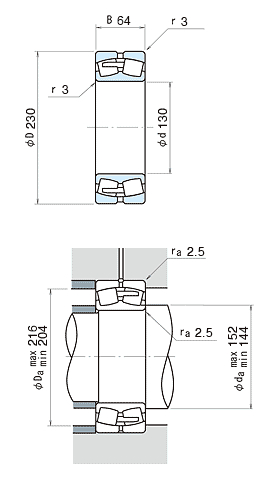

NSK 22226CAME4C3 Bearing details
model | 22226CAME4C3 |
---|---|
d | 130 mm |
D | 230 mm |
B | 64.0 mm |
rmin. | 3.0 mm |
Cr |
820000 N 83500 kgf |
C0r |
940000 N 96000 kgf |
Limiting speeds | 2200 min-1 (Grease) |
Limiting speeds | 2600 min-1 (Oil) |
da min | 144 mm |
da max | 152.000 mm |
Da max | 216 mm |
Da min | 204 mm |
ra | 2.5 mm |
Constant | 0.26 |
Y2 | 3.8 Axial Load Factors |
Y3 | 2.6 Axial Load Factors |
Y0 | 2.5 Axial Load Factors |
Mass | 11.00 kg (approx.) |
NSK 22226CAME4C3 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
