NSK 24126CE4 Bearing

NSK 24126CAME4 Spherical roller bearings

Also known as : 24126CAME4, 24126CC/W33

• Inside Diameter: 130 mm
• Outside Diameter: 210 mm
• Width: 80 mm
• Basic dynamic load rating: 590 kN
• Basic static load rating: 1010 kN

Inquire Now

NSK 24126CE4 Bearing

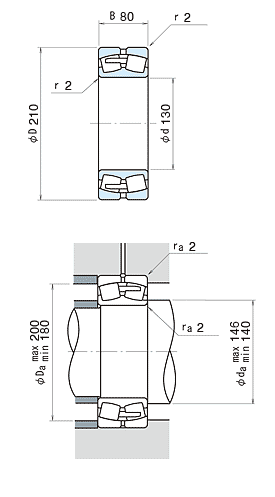

model	24126CAME4
d	130 mm
D	210 mm
B	80.0 mm
rmin.	2.0 mm
Cr	590000 N 60000 kgf
C0r	1010000 N 103000 kgf
Limiting speeds	1300 min-1 (Grease)
Limiting speeds	1700 min-1 (Oil)
da min	140 mm
da max	146.000 mm
Da max	200 mm
Da min	180 mm
ra	2.0 mm
Constant	0.35
Y2	2.9 Axial Load Factors
Y3	1.9 Axial Load Factors
Y0	1.9 Axial Load Factors
Mass	10.70 kg (approx.)

NSK 24126CAME4 roller bearings with Cylindrical Bore, spherical roller bearing, double-Row.
