NSK HR30204J Tapered Roller Bearings
Also known as : HR30204J, 30204
- Inside Diameter: 20 mm
- Outside Diameter: 47 mm
- Width: 15.25 mm
- Basic dynamic load rating: 27.9 kN
- Basic static load rating: 28.5 kN
NSK HR30204J Bearing

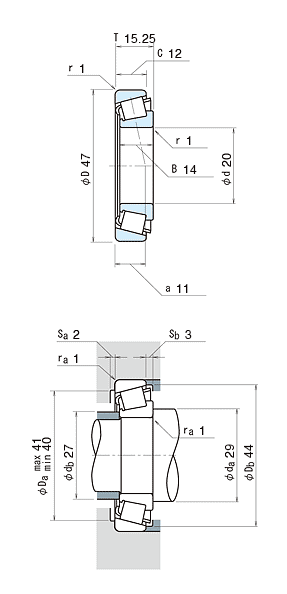

NSK HR30204J Bearing details
| model | HR30204J |
|---|---|
| d | 20 mm |
| D | 47 mm |
| T | 15.25 mm |
| B | 14 mm |
| C | 12 mm |
| Cone rmin. | 1 mm |
| Cup rmin. | 1 mm |
| Cr | 27900 N |
| C0r | 28500 N |
| Limiting speeds | 8000 min-1 (Grease) |
| Limiting speeds | 11000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
2DB |
| e | 0.35 (constant) |
| y1 | 1.7 (Axial Load Factors) |
| y0 | 0.96 (Axial Load Factors) |
| Mass | 0.127 kg (approx.) |
NSK HR30204J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR30204J bearing cross reference
FAG 30204-A bearing
20mm x 47mm x 15.25mm
FAG 30204-XL bearing
20mm x 47mm x 15.25mm
SKF 30204 bearing
20mm x 47mm x 15.25mm
NTN 4T-30204 bearing
20mm x 47mm x 14.0mm
NSK HR32004XJ bearing
20mm x 42mm x 15mm
NSK HR32204CJ bearing
20mm x 47mm x 19.25mm
NSK HR32204J bearing
20mm x 47mm x 19.25mm
NSK 30304D bearing
20mm x 52mm x 16.25mm
NSK HR30304J bearing
20mm x 52mm x 16.25mm
NSK HR32304J bearing
20mm x 52mm x 22.25mm
