NSK HR30211J roller bearings | 55x100x22.75 mm
Also known as : 30211J2
- Inside Diameter: 55 mm
- Outside Diameter: 100 mm
- Width: 22.75 mm
- Basic dynamic load rating: 94.5 kN
- Basic static load rating: 113 kN
NSK HR30211J Bearing
NSK HR30211J Bearing details
| model | HR30211J |
|---|---|
| d | 55 mm |
| D | 100 mm |
| T | 22.75 mm |
| B | 21 mm |
| C | 18 mm |
| Cone rmin. | 2 mm |
| Cup rmin. | 1.5 mm |
| Cr |
94500 N 9650 kgf |
| C0r |
113000 N 11500 kgf |
| Limiting speeds |
3600 min-1 (Grease) |
| Limiting speeds |
5000 min-1 (Oil) |
|
ISO355 Dimensions Series approx. |
3DB |
| e | 0.41 (constant) |
| y1 | 1.5 (Axial Load Factors) |
| y0 | 0.81 (Axial Load Factors) |
| Mass | 0.736 kg (approx.) |
NSK HR30211J roller bearings, tapered roller bearing, Single-Row Metric Design.
NSK HR30211J bearing cross reference

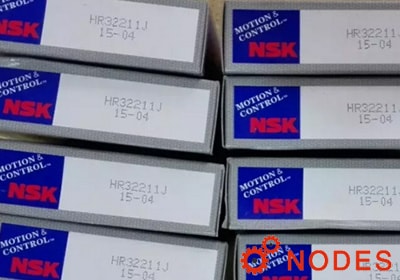

NSK HR32211J bearing
55mm x 100mm x 26.75mm

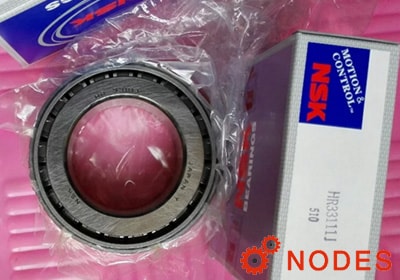

NSK HR33111J bearing
55mm x 95mm x 30mm
FAG 30211-A bearing
55mm x 100mm x 22.75mm
FAG 30211-XL bearing
55mm x 100mm x 22.75mm
NTN 4T-30211 bearing
55mm x 100mm x 21.0mm
NSK HR32911J bearing
55mm x 80mm x 17mm
NSK HR32011XJ bearing
55mm x 90mm x 23mm
NSK HR33011J bearing
55mm x 90mm x 27mm
NSK HR33211J bearing
55mm x 100mm x 35mm
NSK T7FC055 bearing
55mm x 115mm x 34mm
NSK HR30311DJ bearing
55mm x 120mm x 31.5mm
