NSK HR32211J Bearing

NSK HR32211J Tapered roller bearings

Also known as : HR32211J, 32211

  • Inside Diameter: 55 mm
  • Outside Diameter: 100 mm
  • Width: 26.75 mm
  • Basic dynamic load rating: 110 kN
  • Basic static load rating: 137 kN

Inquire Now


NSK HR32211J Bearing

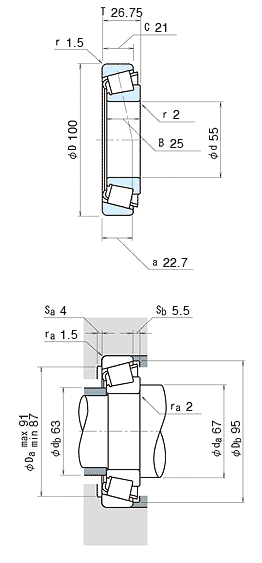

NSK HR32211J Bearing details

model HR32211J
d 55 mm
D 100 mm
T 26.75 mm
B 25 mm
C 21 mm
Cone rmin. 2 mm
Cup rmin. 1.5 mm
Cr 110000 N
11200 kgf
C0r 137000 N
14000 kgf
Limiting speeds
3600 min-1 (Grease)
Limiting speeds
5000 min-1 (Oil)
ISO355
Dimensions Series approx.
3DC
e 0.41 (constant)
y1 1.5 (Axial Load Factors)
y0 0.81 (Axial Load Factors)
Mass 0.859 kg (approx.)

NSK HR32211J roller bearings, tapered roller bearing, Single-Row Metric Design.

NSK HR32211J bearing cross reference

NSK HR33111J bearing
55mm x 95mm x 30mm
FAG 32211-A bearing
55mm x 100mm x 26.75mm
FAG 32211-B bearing
55mm x 100mm x 26.75mm
FAG 32211-B-XL bearing
55mm x 100mm x 26.75mm
FAG 32211-XL bearing
55mm x 100mm x 26.75mm
SKF 32211 bearing
55mm x 100mm x 26.75mm
NTN 4T-32211 bearing
55mm x 100mm x 25.0mm
NSK HR32911J bearing
55mm x 80mm x 17mm
NSK HR32011XJ bearing
55mm x 90mm x 23mm
NSK HR33011J bearing
55mm x 90mm x 27mm
NSK HR30211J bearing
55mm x 100mm x 22.75mm
NSK HR33211J bearing
55mm x 100mm x 35mm
